Description

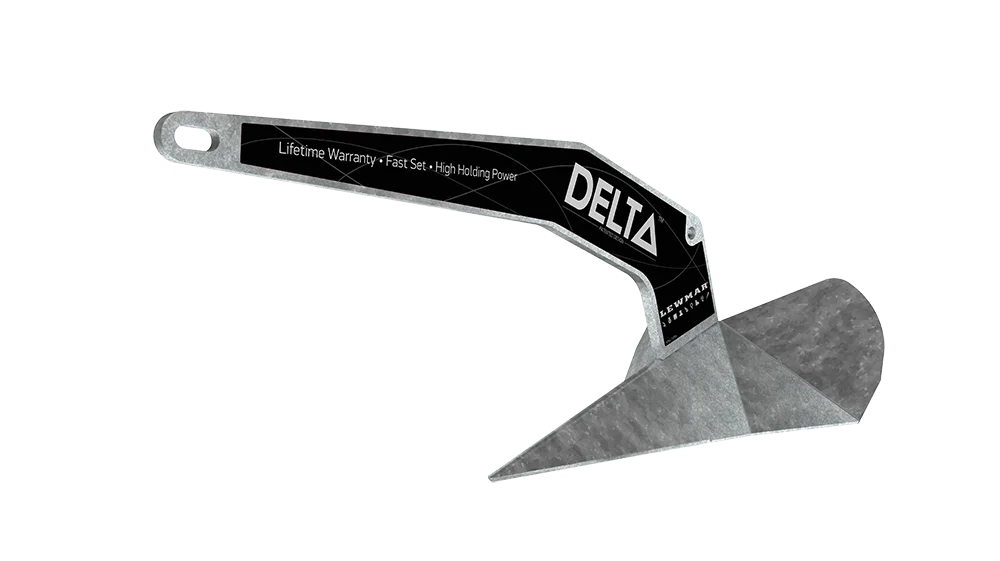

40kg/88lb Delta® Anchor (Galvanised)0057440 by LEWMAR
Its unique shank profile and ballasted tip make the Delta® anchor self-launching. The low centre of gravity and self-righting geometry ensure that the Delta® anchor will set immediately. Consistent and reliable in performance, the Delta® anchor has Lloyd’s Register General Approval of an Anchor Design as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organisations. Also available in premium grade Duplex/High Tensile stainless steel.
All Delta® anchors are “guaranteed for life against breakage”. Lloyd’s Test Certification is available for individual Delta® anchors by arrangement.
**Damage by deformation or bending is not covered by this guarantee.**
- Manufactured from high grade manganese steel
- Self launching
- Lloyd’s Register Type Approval
- Guaranteed for life against Breakage
- Lloyd’s Test Certification available
Specification:
| Anchor Weight(kg) | Recommended Chain Size(mm) |
|---|---|
| 40 | 10 |
| Anchor Weight(lb) | Recommended Chain Size(in) |
|---|---|
| 88 | 3/8 |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
|---|---|---|---|---|---|
| 1103 | 489 | 20 | 833 | 437 | – |
| A(in) | B(in) | C(in) | D(in) | E(in) | F(in) |
|---|---|---|---|---|---|
| 43 1/2 | 19 1/4 | 3/4 | 32 3/4 | 17 1/4 | – |
Delta® Anchors – Stainless steel
4Kg to 63Kg (9lb to 140lb)
CAD Drawing
[.pdf]
[.zip]
[.zip]
