Description

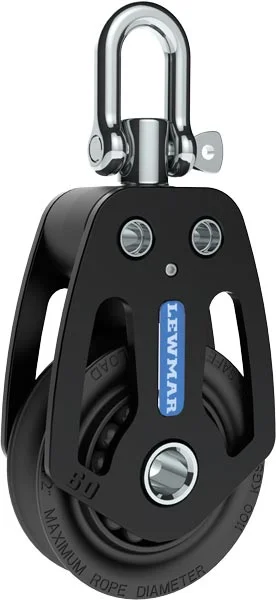

90mm HTX Block Single29199001 by LEWMAR
Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
Features
- Strong aluminium side cheeks
- Central plain bearing for efficiency at high loads
- Side thrust delrin ball bearings
- Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism
Specification:
| Line Size (mm) | Working Load Limit (Kg) | Weight (g) |
|---|---|---|
| 16 | 3500 | 735 |
| Line Size (in) | Working Load Limit (lb) | Weight (oz) |
|---|---|---|
| 5/8 | 7709 | 25.8 |
HTX Single Blocks
Product Literature
[.pdf]
