Description

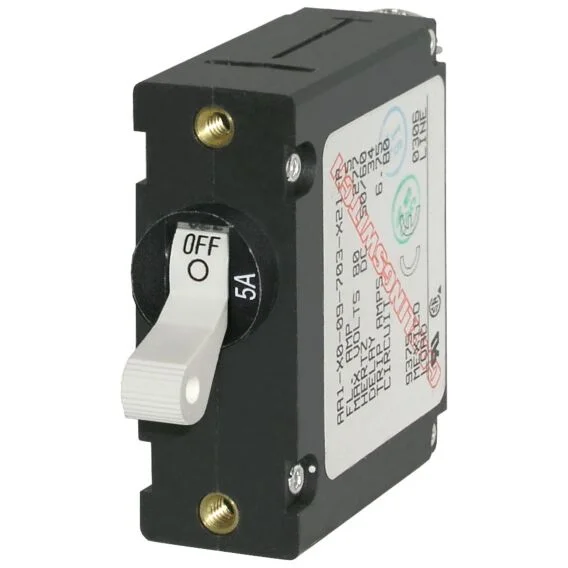

A-SERIES SINGLE POLE MAGNETIC
AC/DC CIRCUIT BREAKER
The industry standard circuit breaker for Blue
Sea Systems’ electrical panels
Combines switching and circuit protection into a
single device
| Specifications | |
|---|---|
| Amperage | 5A AC 5A DC |
| Colour | White |
| Actuator Style | Toggle* |
| Poles | 1 |
| Maximum Voltage | 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity** | 3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.17lb (0.08 kg) |
*An electric switch operated by means of a projecting lever that is moved up and down.
**The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
SEE ALSO AQ 8-27202
