Description

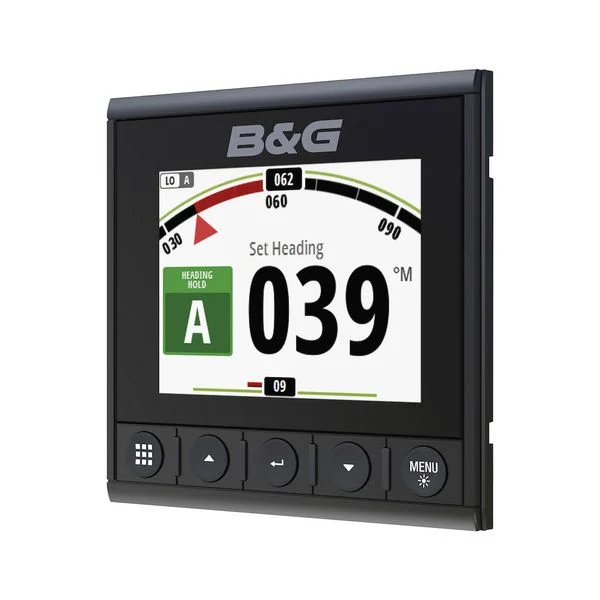

The full-colour Triton² Display provides a clear visual representation of key instrument data including speed, depth, wind, heading, AIS targets, GPS data and more.
The optically bonded display prevents fogging and condensation, while transflective LCD technology provides exceptional contrast and visibility, while consuming less power than traditional backlight-only displays.
The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B&G sail-specific autopilot steering algorithms.
Product contents:
• Triton² Digital Display
• N2K-T-RD Network T-Connector (000-0119-79)
• N2KEXT-2RD 0.61m (2ft) NMEA2000 Cable (000-0119-88)
• Suncover for Display (000-13722-001)
• Installation Kit for Triton² (000-13950-001)
Key Features
Optically Bonded 4.1-inch LCD display – 100% free from condensation or fogging
Transflective LCD technology for clearest sailing dedicated display
Simple on-screen menus controlled by soft-touch waterproof buttons
Sleek 8mm thin design
NMEA 2000® certified
Simple and quick to install
Autopilot integration – will display B&G Pilot data on a clear status screen
Specifications
| Connections | NMEA 2000: 1 x NMEA2000 Micro-C port, 3 LEN |
| Brand | B&G |
| Voltage | 12V DC (10V – 16V DC) |
| Fuse | 5A (recommended) |
| Contents | Digital Display (000-13294-001), N2K-T-RD Network T-Connector (000-0119-79), N2KEXT-2RD 0.61m (2ft) NMEA2000 Cable (000-0119-88), Suncover for Triton² Display (000-13722-001), Install kit for Triton² (000-13950-001) |
| Approvals | IEC/EN 60945 |
| Consumption | Max.: 1.8W / Typical: 1.4W |
| Temperature Range | Operating: -25 to +65°C (-13 to +149°F) / Storage: -40 to +85°C (-40 to +185°F) |
| Warranty | 2 Years |
More Info/Downloads
Operator Manual B&G Triton2 Multi Purpose Digital Display 000 13294 001Quick Guide B&G Triton2 Multi Purpose Digital Display 000 13294 001
Manufacturer Part Number: 000-13294-001
