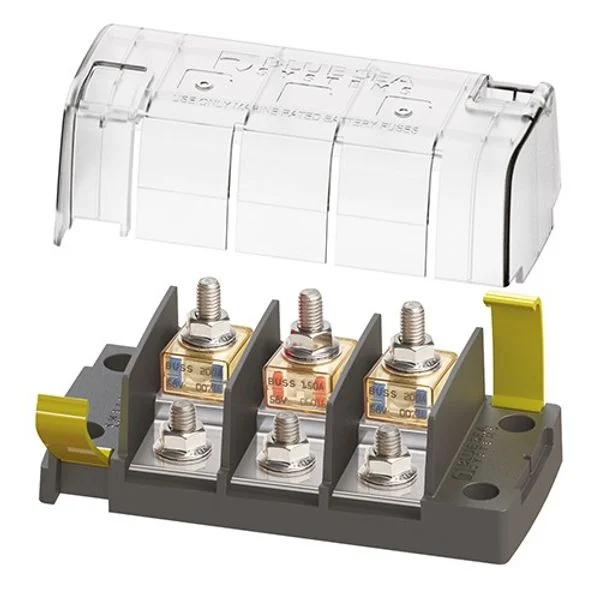

Blue Sea MRBF Fuse Block 3 Independent Sources

Description

MRBF – Marine Rated Battery Fuse

Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection

The independent source fuse block (8-25194) is ideal for 3 output battery chargers

The common source fuse block (8-25196) provides 3 loads from a single source

Clip-on cover insulates terminal connections

Versatile wiring options allow all wires to come out a single side

Label recesses for easy circuit identification

One-piece stainless flange nuts ensure safe and secure connections

Ignition protected when used with MRBF fuses

Fuses sold separately (see page 553 of the Aquafax main catalogue)

Regulatory

Meets ISO 8846 and SAE J1171 external ignition protection requirements when used with MRBF fuses and cover is securely latched

Specifications: 8-25194 8-25196

Voltage Max. Operating: 58V DC 58V DC

Amps Max. Operating: 300 per block 300 per block

(using 4/0 cables) – 240A per circuit

Terminal Fuses available: 30A-300A 30A-300A

Terminal Stud Size: 5/16″ -18 (8mm) 5/16″ -18 (8mm)

Mounting Hole Size: #10 (5mm) #10 (5mm)

Specifications

Manufacturer Part Number: 5194-BSS
