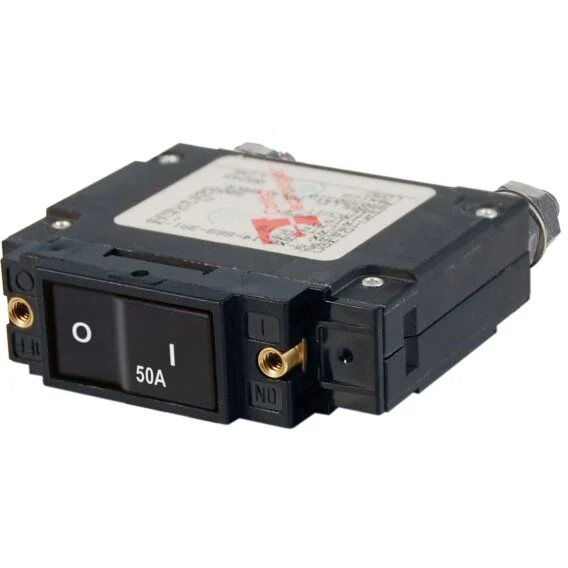

Description
| Specifications | |
|---|---|
| Amperage | 50A AC 50A DC |
| Actuator Style | Flat Rocker* |
| Poles | 1 |
| Maximum Voltage | 240V AC 48V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity** | 3000A @ 120V AC 3500A @ 240V AC 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.55lb (0.25 kg) |
*Resists accidental switching by being flush in the ON position
**The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage
