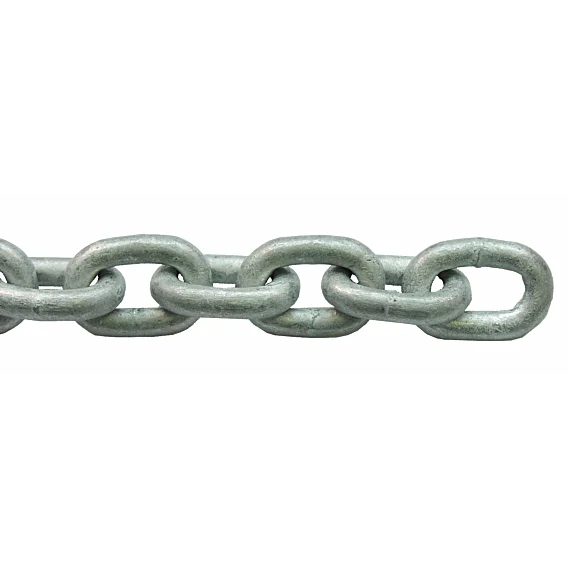

Calibrated Hot Dip Galvanised Chain DIN 766

Original price was: £161.54.Current price is: £40.38.

Diameter:

Length:

SKU: 6686966448186 Category:

Description

The majority of windlasses require chains in accordance with either DIN 766 or ISO 4565. DIN 766. this standard is for calibrated and tested chains using Grade 30 material (as per Waveline specifications). ISO 4565, EN 24565 or BS 7160 are all the same standard which covers anchor chains for small crafts. Producing to these standards ensures the chain is a standard fit and suitable for the majority of windlass on the market today including Lofrans®, Lewmar®, Quick® etc.

Diameter

Length

P x W (mm)

Breaking Load

6mm

30m

18.5 x 20.2

1400kg

6mm

60m

18.5 x 20.2

1400kg

8mm

30m

24 x 27.2

2500kg

8mm

60m

24 x 27.2

2500kg

10mm

30m

28 x 34

3400kg

10mm

60m

28 x 34

3400kg

10mm

100m

28 x 34

3400kg

12mm

30m

34 x 40.8

4480kg

12mm

150m

34 x 40.8

4480kg

Additional information

mycustom

Diameter#30m, 60m, 150m~Length#6mm, 8mm, 10mm, 12mm
