Description

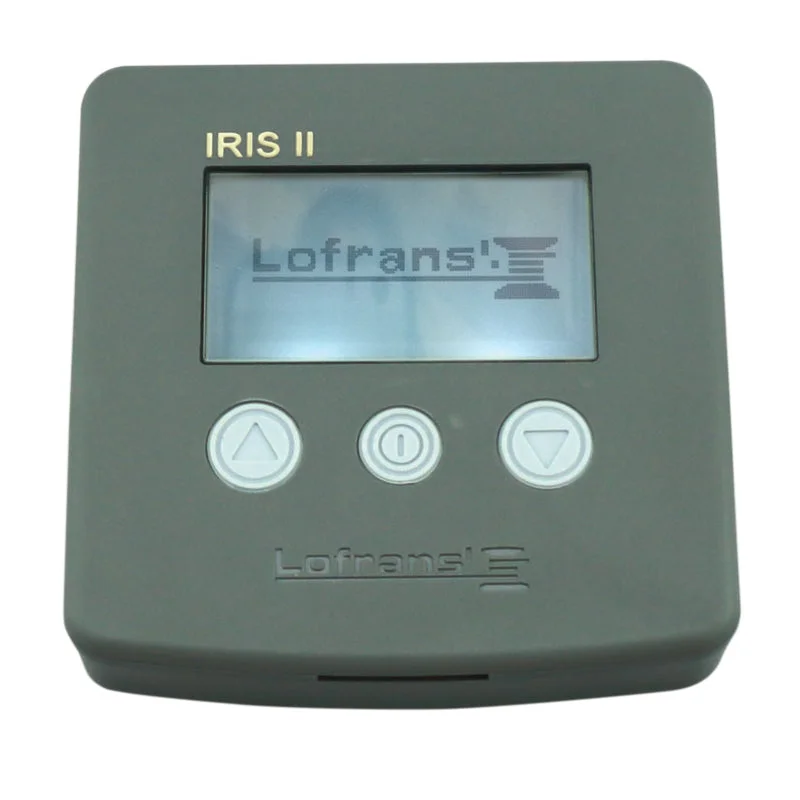

This fly bridge chain counter IRIS II is technologically advanced instrument with an elegant and ergonomic design makes it suitable for all type of boat cockpits. IRIS II is supplied with an evolved microprocessor, with different operations allowing an optimum anchoring. New larger display.
- Chain speed indicator / mooring length in meters or feet
- Voltage indicator
- Up alarm sensor
- Switch on button / Key tones adjustment
- High vision LCD display 3,3” / Backlit display screen /
- Eight level of contrast
- Six language menu (IT, EN, FR, DE, ES, GR)
- Able to control free fall windlasses
- Parallel connection
| Code | Weight | Dimensions | Voltage | Command Transmission | Number of buttons | Operative Temperature | IP Protection rated | Max contacts Amperage | |
|---|---|---|---|---|---|---|---|---|---|
| 600017 | PANEL CHAINCOUNTER IRIS103 | 500 | 110x105x15 (5 flat version) | 12-24 Vdc | Wire | 3 | -10:+60 | 67 | 2 |
More Info/ Document Downloads (Click on links below to Open)
| Manual_IRIS ΙΙ |
|---|
| THETIS Series AND IRIS II_Leaflet_ΕΝ |
| THETIS Series AND IRIS II_Leaflet_IT |
