Description

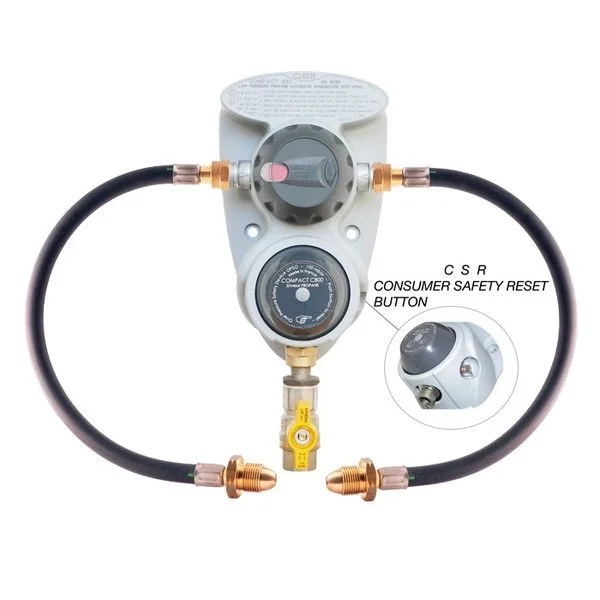

Automatic Changeover Regulators ensure continuous gas supply to onboard appliances. When the pressure in the supply cylinder falls, the changeover regulator switches automatically to the reserve cylinder. Automatic changeover regulators include an indication showing the cylinder supplying the regulator has changed over to the reserve cylinder. OPSO (Over pressure shut off) turns off supply in the event of system over pressure, CSR (Consumer Safety Reset) button for OPSO reset available on some models.
Supplied complete with two cylinder connection pigtails, 1/2″ BSP text point and wall mounting bracket.
CSR OPSO Setting: 125mb
BS EN 16129:2013
Key Features
Excellent change over performance
OPSO “Push to Set” Consumer safety system with indication
“Le Clic” changeover head position with reserve indicator
5kgh 70kW – 37mb design
Non-return valves and filters on both Inlet ports to prevent leakage when changing cylinders
Equipped with a limited flow safety relief valve (LRV)
Protected breather vents positioned under the tough plastic ABS Weather proof designed casing
Engineer adjustable pressure regulation
Now telemetry ready!
Specifications
| Flow Rate | 5kg/h / 70kW |
| Brand | Clesse |
| Application | 2 Cylinder Kit |
| Approvals | EN13786 and fully compliant to new EN16129 |
More Info/Downloads
CompacTR 800 Box leaflet
Manufacturer Part Number: UU5185K-TR
