Concept 3 Portlight 360×162 (Twist Handles)30216100 by LEWMAR

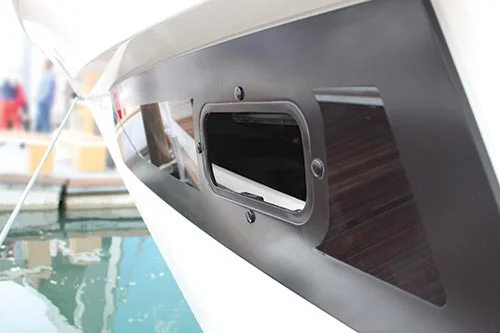

The Concept 3 Portlight enables the integration of an opening portlight into larger expanses of acrylic. Discrete fastenings and the thin exterior frame minimise the aesthetic compromise as much as possible.
- Supply ventilation into the cabin withoutcompromising sleek design lines.
- Portlight designed to sit flush in a 8mm thick panel/coachroof
- Flyscreen not supplied as standard
Specification: Acrylic window thickness (mm) 25Acrylic window thickness (in) 1
| Overall Length X (mm) | Overall Width Y (mm) | Overall Radii R (mm) | Cut-Out X1 Length (mm) | Cutout Width Y1 (mm) |
|---|---|---|---|---|
| 360 | 162 | 61 | 321 | 123 |
| Overall Length X (in) | Overall Width Y (in) | Overall Radii R (in) | Cut-Out X1 Length (in) | Cutout Width Y1 (in) |
|---|---|---|---|---|
| 14 3/16 | 6 3/8 | 2 1/2 | 12 5/8 | 4 13/16 |
