Description

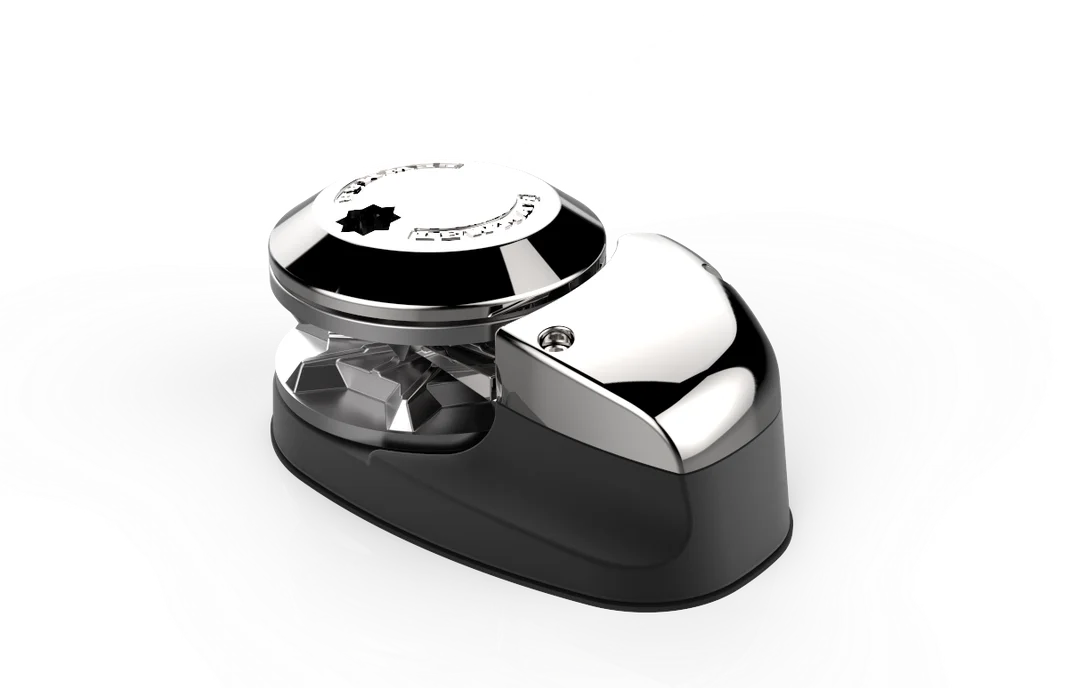

CPX2 Gypsy Only 12V 006 Kit6672011006 by LEWMAR
The CPX2 features tried and tested worm-wheel gearbox architecture and use quality materials throughout – hard anodised aluminium for the base and cast stainless steel for the gypsy top cap and chain pipe cover.
■ Lightweight design
■ 700 & 900W motors
■ Highly reliable gearbox design
View gypsy selection guide here
Specification:
| Motor Power (W) | Max Pull (kg) | Working Load (kg) | Max Line Speed (m/min) | Normal Current Draw (A) | Circuit Breaker (A) | Approx Weight (kg) |
|---|---|---|---|---|---|---|
| 700 | 650 | 163 | 21 | 80 | 90 | 20 |
| Motor Power (W) | Max Pull (lbs) | Working Load (lbs) | Max Line Speed (ft/min) | Normal Current Draw (A) | Circuit Breaker (A) | Approx Weight (lbs) |
|---|---|---|---|---|---|---|
| 700 | 1433 | 358 | 69 | 80 | 90 | 43 |
CPX vertical windlass manual Iss 9 (English)
Ref 66300104 Iss 9 – English
Product Literature
[.pdf]
