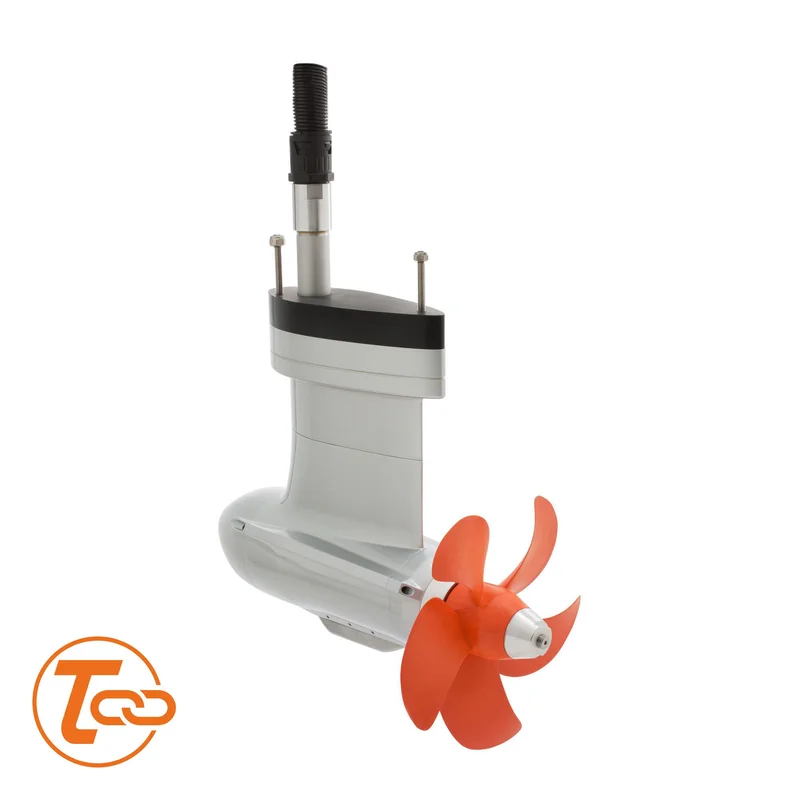

Cruise 12.0 FP TorqLink

Description

Product

• High-efficiency pod motor (fixed), 25 hp equivalent
• TorqLink data interface – enables fast data exchange between TorqLink components without a gateway
• Battery connection cable with waterproof battery pole terminals (IP 66) for connecting up to two Power 48-5000
• To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
• Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery

Ordering information

• Item number: 1283-00 | EAN: 4260113696637

• Throttle not included – best to use with TorqLink throttle with colour display
• Equipment included: Pod motor (fixed) with TorqLink data communication, cable set (4.5 m, 95 mm2) including main switch and v15/p10k propeller
• Warranty: 2 years for non-commercial use

• Saildrive drive system

  The Cruise pod motors with fixed pod installation now offer sailors and motor-boat enthusiasts pod drives with Torqeedo technology, and of course with a TorqTrac interface supplying all essential motor data.

  Fitted inconspicuously below water, the Cruise 12.0 pod saves space and is both lightweight and powerful. The pod drive delivers powerful thrust equivalent to 25 HP, and, with an optional folding propeller, is the long-awaited choice of motor for many sailboat owners.

  Cruise 12.0 FP TorqLink – Benefits:

  • Powerful propulsion like a 25 HP combustion engine
  • More range and power with limited battery capacity than any other electric pod motor
  • Space-saving, powerful, lightweight
  • We recommend the Cruise 12.0 FP TorqLink for motorboats and sailboats up to to 12 tons.
  • Operates with lithium or AGM/lead-gel batteries
  • Intelligent on-board computer and all of the convenience of a Torqeedo electric drive system
  • Very robust design – protected from corrosion, saltwater-capable, and completely waterproof (IPx9K outside the hull when completely assembled)

  Stable pylon
  made from highest-grade seawater-proof aluminumWaterproof to IPx9K outside the hull when completely assembled
  Extra robust
  design protects against damage from debris – wear-resistant and maintenance-free
  Maximum efficiency
  for greater performance and range

  Here you can see the
  Folding propeller v15/p10k Cruise 12.0 FP TorqLink (article-no.: 1945-00)Cruise Info Tool

  Operating Instructions

  Cruise 12.0 FP TorqLink – German / English
  Cruise 12.0 FP TorqLink – Italian / French
  Cruise 12.0 FP TorqLink – Spanish / Portuguese
  Cruise 12.0 FP TorqLink – Dutch / Danish
  Cruise 12.0 FP TorqLink – Swedish / Norwegian / Finnish

  Specifications

  Technical Data Cruise 12.0 FP TorqLink

  	Cruise 12.0 FP TorqLink
  Input power in watts	12,000
  Propulsive power in watts	6,720
  Comparable diesel inboards (propulsive power)	25 HP
  Comparable diesel inboards (thrust)	25 HP
  Maximum overall efficiency in %	56
  Static thrust in lbs*	up to 405
  Integrated battery	–
  Nominal voltage	48
  Final charging voltage	–
  Total weight in kg	33.5
  Motor weight without battery in kg	–
  Weight of integrated battery	–
  Shaft length in cm	–
  Standard propeller (v = speed in km/h at p = power in watts)	v15/p10k
  Alternative propeller options	v15/p10k Cruise 10.0 (Folding Propeller) v22/p10k v32/p10k
  Propeller Guide
  Maximum propeller speed in rpm	1,400
  Control	TorqLink throttle**
  TorqLink	Yes
  Steering	–
  Tilting device	–
  Trim device	–
  Integrated on-board computer	Yes
  Stepless forward/reverse drive	Yes

  * Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.

  ** not included

  Declaration of Conformity

  Declaration of Conformity Cruise 3/6/12

  Technical Drawing

  Dimensions Cruise 12.0 FP TorqLink pod-drives
