Description
Product
- 12 kW continuous power – powerful propulsion like a 25 hp combustion engine
- TorqLink data interface – enables fast data exchange between TorqLink components without gateway
- Electric tilting device for comfortable operation
- Easy handling thanks to low-voltage design (48 volts)
- Very robust construction – corrosion-protected, seawater-proof and waterproof all around (IP67)
- Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
- Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
- Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
- To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
- Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Ordering information
- Item number: 1282-00 | EAN: 4260113696620
- Throttle not included – best to use withTorqLink throttle with colour display
- Equipment included: Outboard with TorqLink data communication, connection to remote steering, cable set (4.5 m, 95 mm2) including main switch and v22/p10k propeller
- Warranty: 2 years for non-commercial use
-
Cruise 12.0 R TorqLink

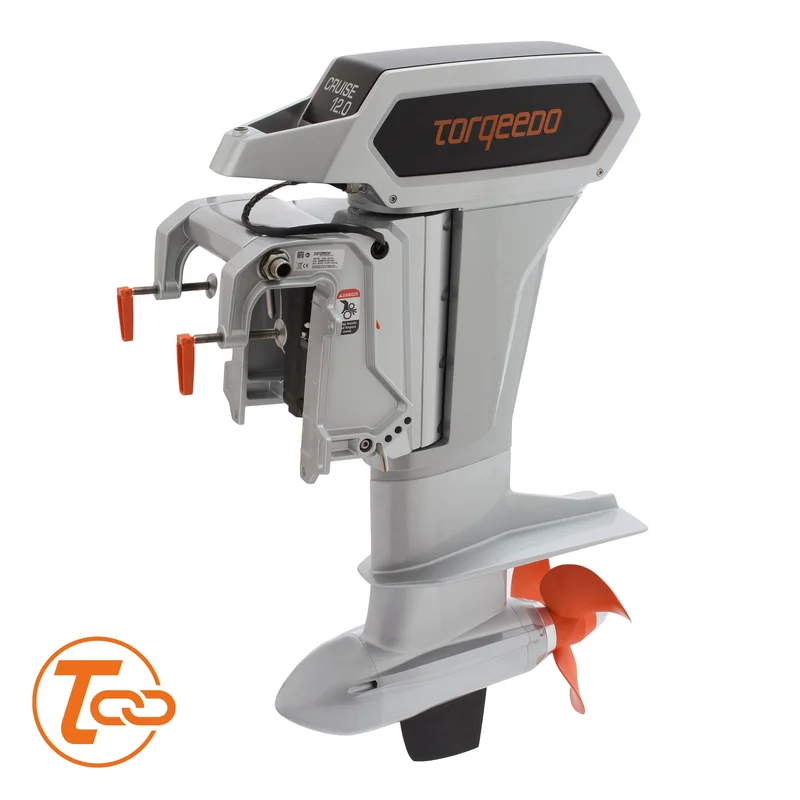

The new flagship of the Cruise line: The new Cruise 12.0 not only has an impressive appearance, it also delivers impressive performance. High-tech from the shaft head to the fin – and emission-free. Make way for the Cruise 12.0!
The Cruise 12.0 is comparable to a 25 HP petrol outboard and can be easily mounted on your boat with a couple of tools.
Its power supply requires at least two (Power 48-5000) or four lithium batteries (Power 24-3500)
Cruise 12.0 R TorqLink – Benefits:
- Powerful propulsion like a 25 HP combustion engine
- Simple handling thanks to voltage level of 48 V
- We recommend the Cruise 12.0 for dinghies and sailboats up to 12 tons.
- Remote steering connector option.
- Intelligent on-board computer and all of the convenience of a Torqeedo electric drive system
- Very robust design – protected from corrosion, saltwater-capable, and completely waterproof (IP67)
- Low-profile design – elegant and modern …
Connection for standard remote steeringElectric tilt for ease of operationAvailable with short, long and extra long shaftExtremely robust design, suitable also for commercial useOptimised propeller design: for greater thrust or more speedCruise Info Tool
Specifications
Technical Data Cruise 12.0 R TorqLink
Cruise 12.0 R TorqLink Input power in watts 12,000 Propulsive power in watts 6720 Comparable petrol outboards (propulsive power) 25 HP Comparable petrol outboards (thrust) 25 HP Maximum overall efficiency in % 56 Static thrust in lbs* ≤ 405 Integrated battery – Nominal voltage 48 Final charging voltage – Weight in kg (w/o cables & main switch) 59.8 (S), 61.3 (L), 62.5 (XL) Motor weight without battery in kg – Weight of integrated battery – Shaft length in cm 38.5 (S) / 51.2 (L) / 63.9 (XL) Standard propeller
v = speed in km/h at p = power in wattsv22/p10k Alternative propeller options v32/p10k & v15/p10k Maximum propeller speed in rpm 1,400 Control Remote throttle TorqLink Yes Steering Provision to connect to standard remote steering Tilting device Electrohydraulic tilt device with overload protection. Tilt angle +-45° Trim device Manual, 4-step Integrated on-board computer Yes Stepless forward/reverse drive Yes * Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
Declaration of Conformity
Declaration of ConformityCruise 3/6/12
Technical Drawing
Dimensions Cruise 12.0 RS TorqLinkDimensions Cruise 12.0 RL TorqLinkDimensions Cruise 12.0 RXL TorqLink outboards
