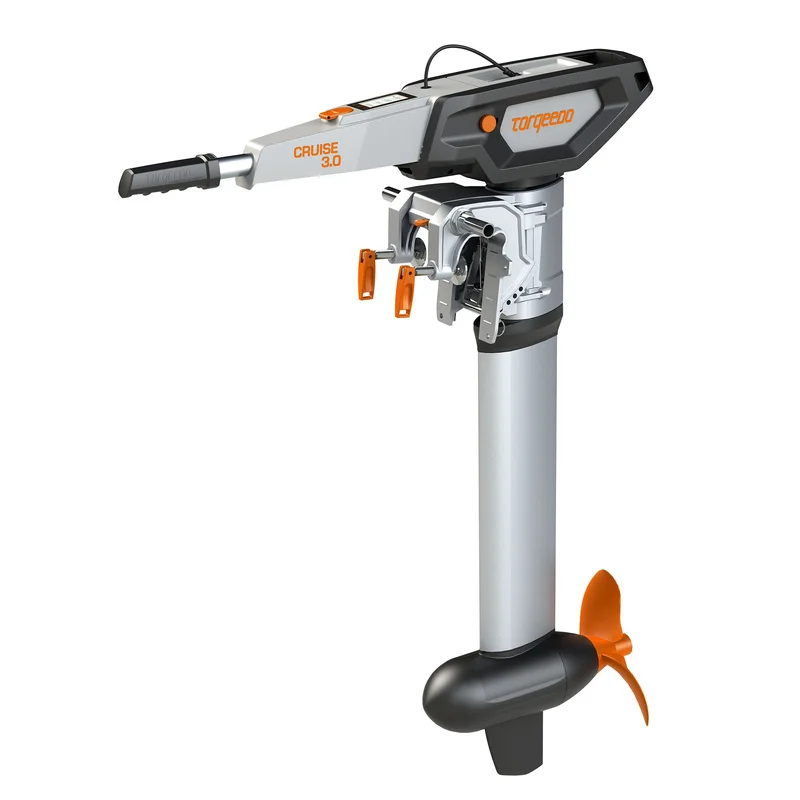

Cruise 3.0 T

Description

Product

• Maximum efficiency outboard with tiller control
• Improved robustness and improved corrosion protection
• 3,000 W input power, in terms of propulsion is comparable with a 6-hp petrol outboard
• Integrated on-board computer with GPS-based range calculation

Ordering information

• Item number: 1265-00 | EAN: 4260113696767

• Equipment included: Outboard with tiller control, cable set (S: 4.4m L: 4.3m, 35 mm²) including main switch and propeller B 12 x 10,5 WDR, emergency magnetic stop key
• Warranty: 2 years for non-commercial use

• Specifications

  Technical Data Cruise

  	Cruise 3.0 T
  Input power in watts	3000
  Propulsive power in watts	1530
  Comparable petrol outboards (propulsive power)	6 HP
  Comparable petrol outboards (thrust)	8 HP
  Maximum overall efficiency in %	51
  Static thrust in lbs*	142
  Integrated battery	–
  Nominal voltage	24
  Final charging voltage	–
  Total weight in kg	19.7 (S) / 20.2 (L)
  Motor weight without battery in kg	–
  Weight of integrated battery	–
  Shaft length in cm	62.5 (S) / 75.5 (L)
  Standard propeller v = speed in km/h at p = power in watts	Propeller B 12 x 10,5 WDR
  Alternative propeller options
  Propeller Guide
  Maximum propeller speed in rpm	1100
  Control	Tiller
  TorqLink	No
  Steering	360° lockable
  Tilting device	Manual with grounding protection
  Tilt angle	61,3°
  Trim device	Manual, 4-step
  Integrated on-board computer	Yes
  Stepless forward/reverse drive	Yes

  * Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust of ConformityCruise 3/6/12

  Technical Drawing

  Dimensions Cruise 3/6 TS / TL outboards
