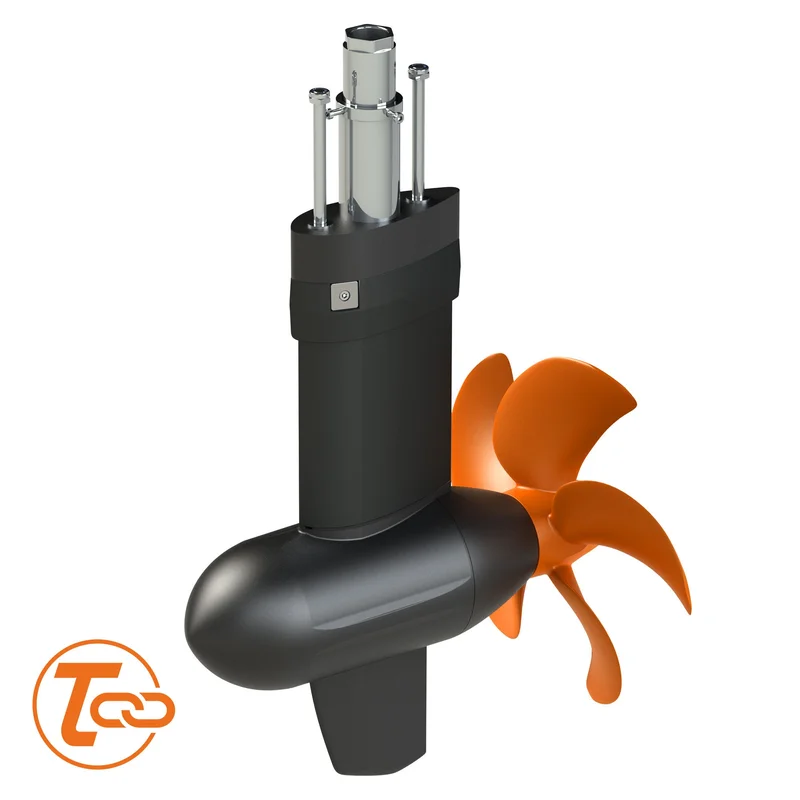

Cruise 6.0 FP TorqLink

Description

Product

• High-efficiency pod motor (fixed position)
• 9.9 HP equivalent
• Onboard computer and display with GPS-calculated range and runtime
• TorqLink data interface – enables fast data exchange between TorqLink components without gateway

Ordering information

• Item number: 1269-00 | EAN: 4260113696804

• Throttle not included – best paired with TorqLink throttle with colour display
• Equipment included: Pod motor (fixed position), 35 mm2 cable set (4.4 m) including main switch and propeller B 12 x 13 THR
• Warranty: 2 years for non-commercial use

• Pod 6.0

  The new Cruise pod motors with fixed pod installation now offer sailors and motor-boat enthusiasts pod drives with Torqeedo technology, and of course with a TorqTrac interface supplying all essential motor data.

  Fitted inconspicuously below water, the pod drives save space and are both lightweight and powerful. The pod models deliver powerful thrust equivalent to 6 or 9,9 HP, and, with an optional folding propeller, are the long-awaited choice of motor for many sailboat owners.

  Cruise 3.0 / 6.0 FP Benefits:

  • Space-saving, powerful, lightweight
  • Plenty of range due to highest efficiency
  • Safe, thanks to emergency magnetic kill switch
  • We recommend the Cruise 6.0 for sailboats up to to 6 tons
  • Operates with lithium or AGM/lead-gel batteries
  • All models with GPS on-board computer and display: Real-time display of speed and input power – and also the exact battery status and remaining range when used in combination with the Power 48-5000 lithium battery
  • Very robust design – protected from corrosion, saltwater-capable, and completely waterproof (IPx9K outside the hull when completely assembled)

  Stable pylon
  made from highest-grade seawater-proof aluminumWaterproof to IPx9K outside the hull when completely assembled
  Extra robust
  design protects against damage from debris – wear-resistant and maintenance-free
  Maximum efficiency
  for greater performance and rangeCruise Info Tool

  Specifications

  Technical Data Cruise FP

  	Cruise 6.0 FP
  Input power in watts	6,000
  Propulsive power in watts	2,760
  Comparable petrol outboards (propulsive power)	9.9 HP
  Comparable petrol outboards (thrust)	15 HP
  Maximum overall efficiency in %	58
  Static thrust in lbs*	230
  Integrated battery	–
  Nominal voltage	48
  Final charging voltage	–
  Total weight in kg	14.7
  Motor weight without battery in kg	–
  Weight of integrated battery	–
  Shaft length in cm	–
  Standard propeller (v = speed in km/h at p = power in watts)	Propeller B 12 x 13 THR
  Alternative propeller options	Propeller B13 x 11 FLD
  Maximum propeller speed in rpm	1,130
  Control	Remote throttle
  TorqLink	Yes
  Steering	–
  Tilting device	–
  Trim device	–
  Integrated on-board computer	Yes
  Stepless forward/reverse drive	Yes

  * Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust of Conformity Cruise 3/6/12

  Technical Drawing

  Dimensions Cruise 3/6 FP pod-drives
