Description

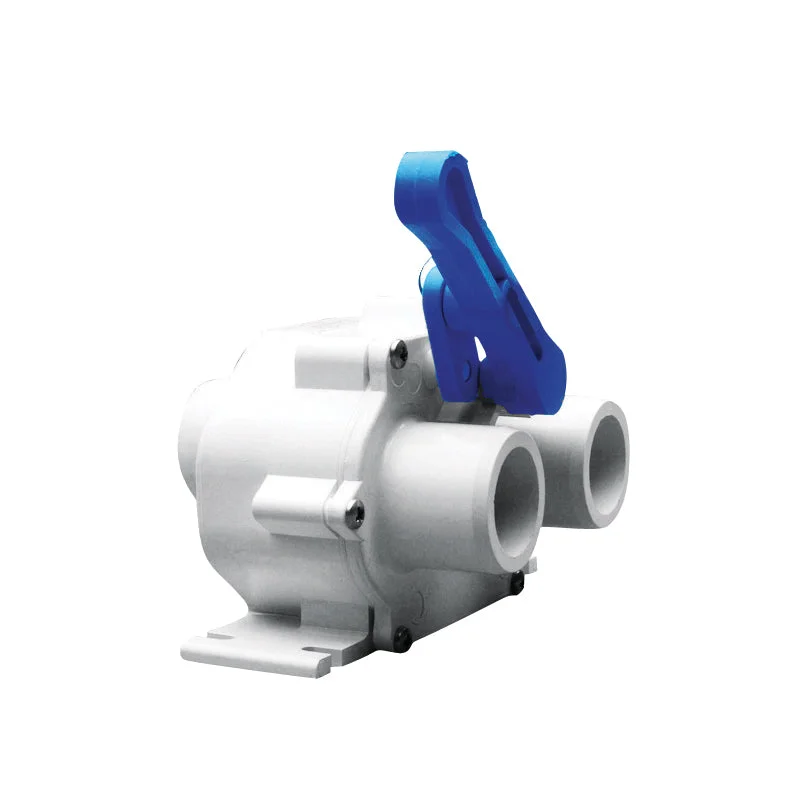

The Nuova Rade 3-way Diverter Valve for tanks is a universal valve that can be used installed on boards or on bilge evacuation systems. It allows the operator to choose between two outlets.
Features
• Corrosion resistant ABS and stainless steel structure
• Ideal for marine sewage and bilge pump out systems
• Ports: 1-1/2’’ ID flexible hose
• Can be padlocked
• Long distance control by means of a push-pull cable
Bilge systems: For boats having two separate bilge areas, the 3-way Diverter allows to empty either one, with only one pump.
Sewerage systems: When installed in the holding tank discharge line, the y-valve allows the choice between pumpout through a deck fitting or directly through a seacock. When installed in the marine toilet discharge line, it allows the choice between storing the effluent in the waste tank or discharging it directly overboard (if legal).
| Code | |
|---|---|
| 196791 | Diverter Valve, 3-way, for tanks |
More Info/ Document Downloads (Click on links below to Open)
| Manual_ Diverter Valve 3-way for tanks |
|---|
| Manual_ Diverter Valve 3-way for tanks_IT |
