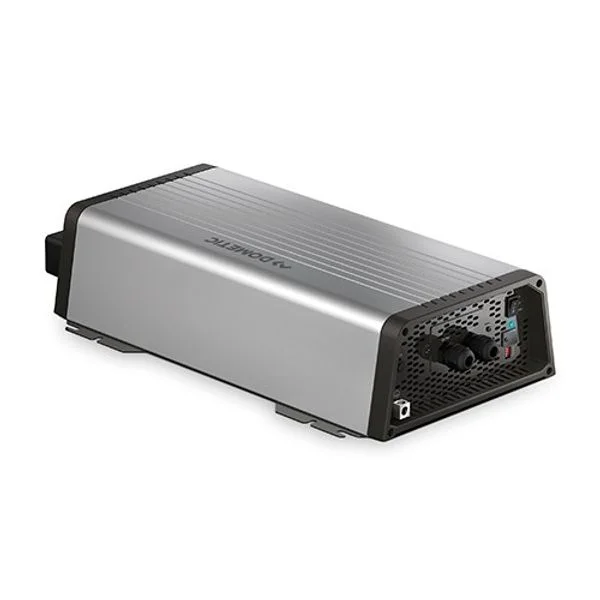

Dometic Pure Sine Wave Inverter 12V 1800W DSP1812TUK

Description

The Sinepower DSP and DSP-T series generate a pure sine wave voltage, which is perfect even for sensitive 230V devices. They are fitted with smart protection circuits for safe operation. In case of overload, overheating, over or under voltage, the clever inverters switch off automatically – and on again when everything’s OK.

The integrated fan smoothly adjusts to the load and temperature conditions, which makes it pleasantly quiet. The premium inverters in the Sinepower DSP-T series offer two extra benefits; a mains priority circuit with voltage synchronisation and energy saving Smart Standby Mode.

Specification:

Output Voltage: 230/240V AC ± 3% pure sine wave (THD <3 %)

Output frequency: 50/60 Hz ± 0.3 Hz

Input Voltage Range: 12V: 10-16.5V DC

24V: 20-33V DC

Heat dissipation: temperature & load controlled fan

Ambient temp at operation: -20°C to +60°C

Ambient temp for storage: -30°C to +70°C

Power Control: ≥40ºC

Bypass Relay: 16A/250V AC

Bypass switching with voltage synchronisation: <20 ms

Air humidity: 0 – 95%, non-condensing

Testing/Certification: CE, E13

Specifications

Manufacturer Part Number: 9600005005
