Description

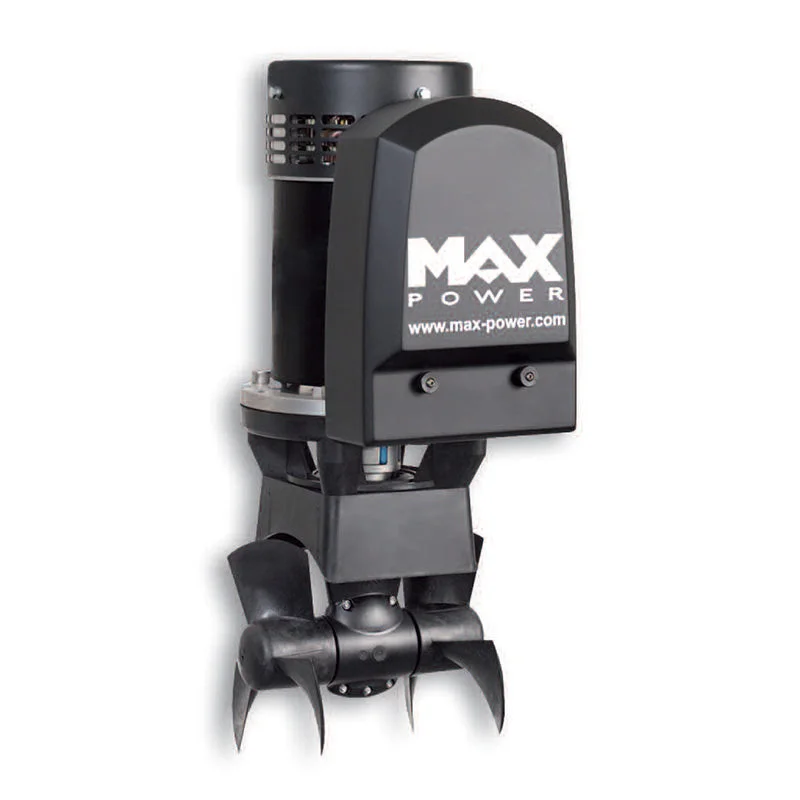

The 24V CT165 is ideally suited to motor boats and deep footed sailing yachts ranging from 40’-62’. Manufactured using composite materials, this model has twin propellers, a 250mm diameter tunnel and a thrust rating up to 160/352 (kg/lbs).
This model integrates all the unique features of the Max Power electric tunnel thrusters range, ensuring a long and maintenance free lifespan.
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
| Code | |
|---|---|
| 317557 | MAXPOWER THRUSTER CT165 ELEC DUO COMPO 24V Ø250 |
