Description

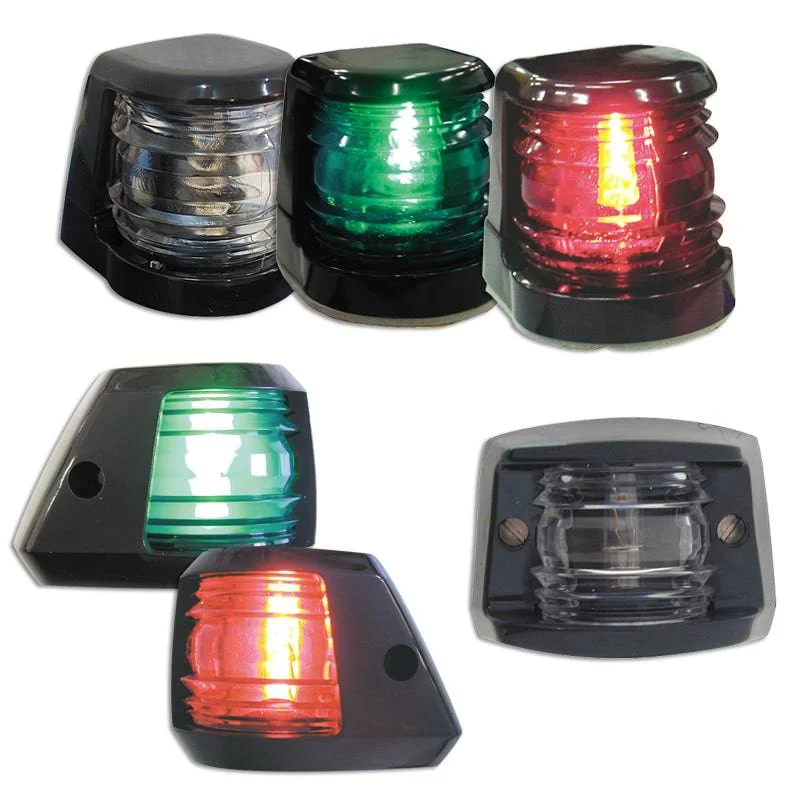

FAROS 7 series of navigation lights includes masthead, starboard, port and stern lights, ideal for powerboats up to 7m. They lights are waterproof, non-corrosive and non-magnetic. They are mounted on
the surfaces with wall plugs. Navigation lights with wall plug have the advantage that they are much easier to mount and you only need to open one hole. This range is provided with a two sided adhesive
tape and flange, which by sticking it on the surface you know exactly where to open the hole and the flange is already in the correct place.
• Material: Made of nylon fiber mix housing and shatterproof
plexiglass (PMMA) lens
• Housing: Available in black housing
• Seal: Nitrile water resistant
• Installation: Side & deck mounted
• Visible distance: Port – Starboard – Bi-colour: 1nm / Stern. Masthead: 2nm
• Contacts: Brass.
• Bulb (included): 12V / 5W
Instructions:
- Remove the protective paper from the self adhesive flange
- Attach the flange at the point you want to place the light and open the holes using a drill
- Pass the wires through the lower hole and fit the light’s rawl plugs in the side holes
- Screw until the rawl plugs are secured
| Code | Housing | |
|---|---|---|
| 30861 | FAROS 7 Starboard Light 112,5°, Side mounted, with black housing | Black |
| 30862 | FAROS 7 Port Light 112,5°, Side mounted, with black housing | Black |
| 30863 | FAROS 7 Stern Light 135°, with black housing | Black |
| 30864 | FAROS 7 Masthead Light 225°, with black housing | Black |
| 30865 | FAROS 7 Bi-colour Light, with black housing | Black |
| 31051 | FAROS 7 Starboard Light 112,5°, Deck mounted, with black housing | Black |
| 31052 | FAROS 7 Port Light 112,5°, Deck mounted, with black housing | Black |
