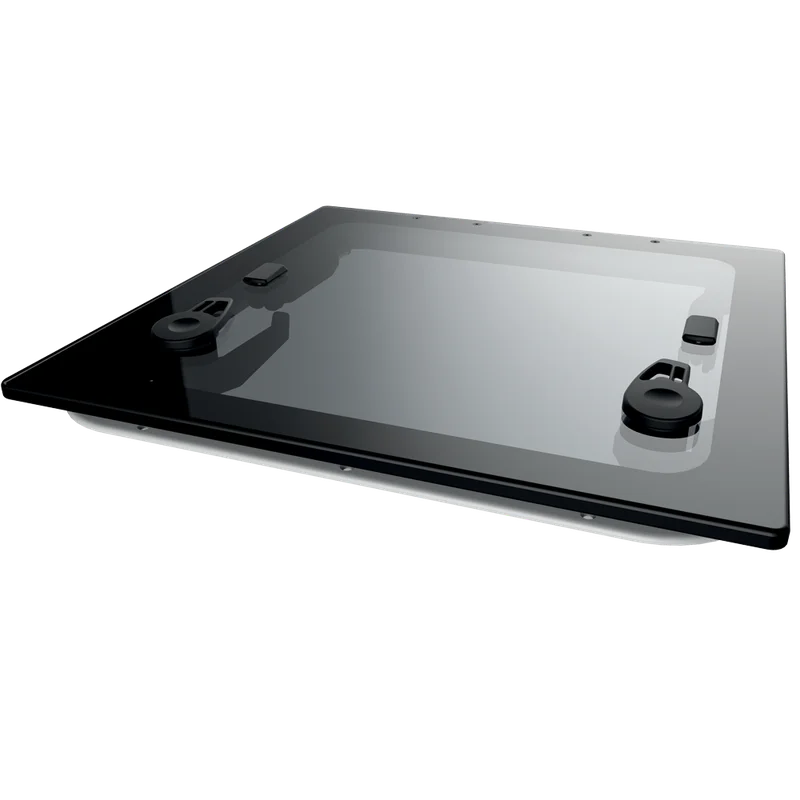

Flush 2G Hatch 575×284 – Bavaria30190400 by LEWMAR
Please look through all models below to see our available ‘standard’ spare parts.
Specification:
| Support System | Lower Frame Flange (mm) | Acrylic Window Thickness (mm) |
|---|---|---|
| Friction Lever | 15 | 12 |
| Support System | Lower Frame Flange (in) | Acrylic Window Thickness (in) |
|---|---|---|
| Friction Lever | 9/16 | 1/2 |
| Length X (mm) | Width Y (mm) | Height Z (mm) | Raddii R (mm) | Cut-Out Length X1 (mm) | Cut-Out Length Y1 (mm) | Cut-Out Length R1 (mm) |
|---|---|---|---|---|---|---|
| 575 | 284 | 31 | 10 | 505 | 214 | 42.5 |
| Length X (in) | Width Y (in) | Height Z (in) | Raddii R (in) | Cut-Out Length X1 (in) | Cut-Out Length Y1 (in) | Cut-Out Length R1 (in) |
|---|---|---|---|---|---|---|
| 22 5/8 | 11 3/16 | 1 1/4 | 3/8 | 19 7/8 | 8 7/16 | 1 11/16 |
