Description

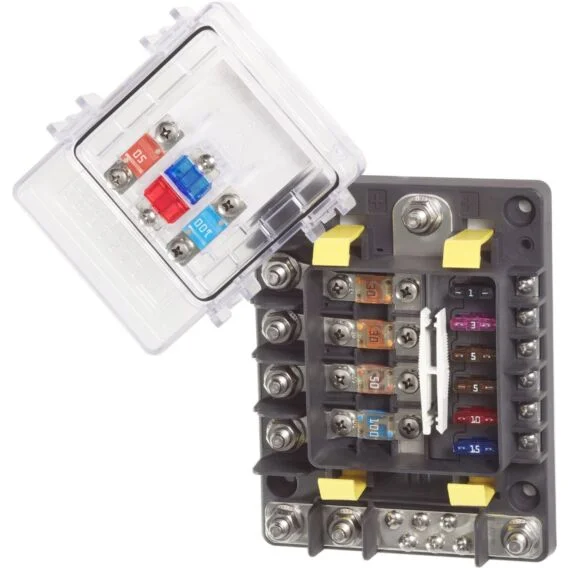

An ignition protected fuse block with screw termination safe for use on gasoline-powered boats
| Specifications | |
|---|---|
| Circuits | 10 |
| Stud Size | M8 x 1.25 |
| Operating Voltage | 12V 24V 32V |
| Amperage Maximum Operating – combined | 200A* 350A** 600A*** |
| Recommended Ring Terminal | M8 (5/16″) |
| Screw Torque, 8-32 | 18in-lb (2.03 Nm) |
| Screw Torque, M5 | 27in-lb (3.05 Nm) |
| Stud Torque | 180 in-lb (20.34 Nm) |
| Weight | 3.50lb (1.59 kg) |
*Using 2/0 Cable – 50C Maximum Ambient Temperature to Achieve Maximum Amperage Ratings
**Using 4/0 Cable – 50C Maximum Ambient Temperature to Achieve Maximum Amperage Ratings
***Using 2 x 4/0 Cable – 50C Maximum Ambient Temperature to Achieve Maximum Amperage Ratings
