Description

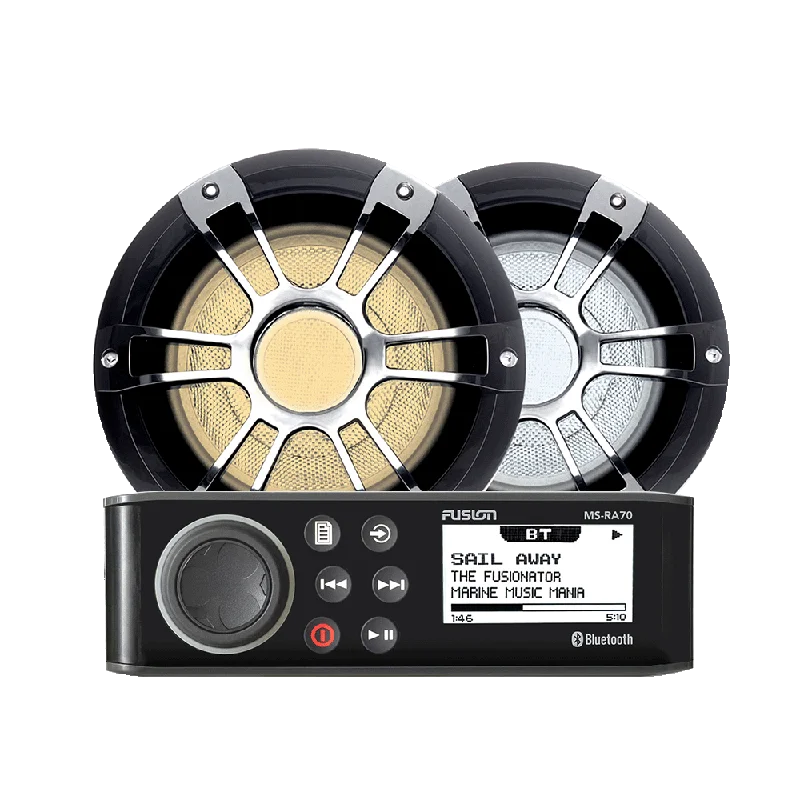

Special offer bundle value pack comprising of:
- Fusion MS-RA70 Marine Entertainment System with Bluetooth
- Fusion SG-FL652SPC 6.5″ CRGBW LED Marine Speakers 230W – Sports Chrome
Fusion MS-RA70 Marine Entertainment System
- Seamlessly retrofit existing DIN-sized cutout without needing to reconfigure dash space
- Optically bonded monochrome LCD improves screen visibility
- Built-in Class-AB amplifier delivers efficiency with reduced distortion
- Multi-Zone Technology gives control of two separate audio zones
- Control music from a compatible multifunction display (MFD), smart device or Garmin watch
Fusion SG-FL652SPC 6.5″ CRGBW LED Marine Speakers 230W
- Speaker Size: 6.5″
- Peak Power: 230 Watts
- RMS Power Rating: 75 Watts
- Frequency Response: 70 Hz – 22 kHz
- Nominal Impedance: 4 Ohms
- LED Color Options: CRGBW (Cool White, Red, Green, Blue, Warm White)
- Water and Dust Resistance (IP Rating): IP65
- Mounting Diameter Clearance: 136mm [5-3/8″]
- Mounting Depth Clearance: 79mm [3-1/8″]
- Speaker Dimensions: Ø 176mm x 76mm [Ø 6-15/16″ x 3″]
Specification
Technical Specifications
X
| General | |
|---|---|
| Dimensions | 60 x 188 x 123.5mm |
| Weight | 556g |
| Waterproof Rating | IPX7 (front panel only, when properly installed) |
| Power Input | 10.8 – 16VDC |
| Operating Temperature Range | 0°C – 50°C |
| Current (Max) | 15A |
| Bluetooth Wireless Range | 10 Metres |
| Ant Wireless Range | 3 Metres |
| Wireless Frequencies / Protocols | Bluetooth 2.4GHz @+1.9dBm nominalANT 2.4GHz @+1.9dBm nominal |
| Compass-safe distance | 150mm |
| Stereo Features | |
|---|---|
| Display | 128 x 64 optically bonded monochrome LCD |
| Built-in amplifier | Class-AB |
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | MS-RA70: Yes (smartphone and Garmin watch)MS-RA70N: Yes (MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ ready | MS-RA70 and MS-RA70N only; (requires DAB100A antenna module) |
| NRX remote compatibility | MS-RA70N only |
| Multi-language interface | Dutch / English / French / German / Italian / Spanish |
| Fits DIN-sized cutout | Yes |
| Software updates | USB |
| Warranty | 3 year |
| Sources | |
|---|---|
| Sources | AM / FMBluetoothUSB audioiPhone / iPodAUX x1 / AOADAB+ ready (available in Europe and Australia only) |
| Connectivity | |
|---|---|
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | No |
| USB 2.0 | One USB 2.0 port |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | Zone 1, Zone 2 (L + R, requires external amplification) |
| Subwoofer out | Zone 1, Zone 2 (requires external amplification) |
Stream a soundtrack from any compatible device with control available from the stereo or a connected smart phone via the FUSION-Link Bluetooth app. Simply download the free Apple or Android FUSION-Link remote control app for Bluetooth from iTunes or Google Play and enjoy localized zone control, source navigation, track selection and the freedom of wireless control.
With two independent audio zones available, each with advanced localized menu controls, including zone naming, easily customise and control the listening experience in each zone. Note: Line Out/Sub Out requires additional amplification (Linked to Zone 1).
The MS-RA70 designed and engineered specifically for the marine environment, with IPx7 (when mounted correctly) to withstand the environment like none other, perfectly paired with an optically bonded LCD for crystal clear display on the high seas.
Stunning signature acoustic performance now with premium CRGBW LED lighting.
Pushing the boundaries of what is possible on the water even further, the new revamped Fusion Signature Series 3 marine speakers deliver unparalleled performance even when exposed to the harshest marine conditions.
Incorporating the finest materials and latest acoustic technologies, we have combined ‘CURV’ cone composite technology with a silk dome tweeter and fully sealed crossover components to create a speaker system with a stunning signature sound for premium on-water listening.
The sports-style Signature Series 3 speakers feature industry-first CRGBW LED lighting to illuminate your vessel with an unprecedented spectrum of colors, to help set the mood or start the party with premium, more ambient lighting.
These 6.5″ Signature Series 3 speakers can handle up to a thunderous 230 Watt peak power, so you can truly experience “The Power Of Music”.
Features:
Premium CRGBW LED Lighting: Industry-first marine speakers with CRGBW (Cool White, Red, Green, Blue, Warm White) illuminates an unprecedented spectrum of colors from premium pastels to vibrant hues to match your music for an unparalleled, more ambient on-water entertainment experience. Control the color, brightness, light mode and speed with the optional MS-CRGBWRC wireless remote control (sold separately).
CURV Cone Technology: Incorporates CURV woven fiber composite which is heat pressed to form a lighter and stronger cone that delivers improved sound definition and higher output, while also providing increased protection from the marine conditions.
Fully Sealed Crossover Components: Provides full protection from the harsh marine environment, whilst delivering an improved frequency response at the crossover point for a detailed audio spectrum and new level of acoustic performance.
Sports Styled Grille: A structurally rigid True-Marine™ design provides the ultimate cone protection, with great looks to complement any vessel. Aesthetically designed for both in your cabin or on your deck.
Silk Dome Tweeter: Creates a smooth upper frequency response with increased efficiency, and delivers crystal clear music reproduction.
Designed To Comply With ISO12216: Tested to international standards for pressure and watertightness, it recognizes the Signature Series 3 speakers are designed and built to the highest industry standards for quality and robustness.
