Garmin Reactor 40 Kicker Autopilot Stainless Steel Tilt Tube GHC 50

Description

ECU 14

• Dimensions: 17.5 x 14.2 x 6.5 cm
• Supply voltage range: 10 to 32 volts
• Operating temperature range: -20° to 70° C
• Typical power consumption: 1 to 2 amps average depending on weather conditions
• Water rating: IPX7

Steering Actuator

• Motor side: Extends 10.3 cm (4″) from end of tilt tube
• Motor: 6.2 cm ( 2.5”) diameter
• Overall length: Closed 44.5 cm (17.5”); Extended 64.4 cm (25.3”)
• Operating temperature range: -20° to 70° C
• Water rating: IPX7

Reactor Autopilot Remote Control

• Physical dimensions: 15.2 x 5.2 x 3.2 cm
• Weight: 109 g without batteries
• Display type: Sunlight-visible transflective memory-in-pixel (MIP)
• Display size: 3.0 cm diameter
• Display resolution: 240 x 240 pixels
• Power: 2 x AA batteries (sold separately)

Throttle Actuator

• Dimensions: 15.1 x 5.9 x 2.8 cm
• Operating temperature range: -20° to 70° C
• Water rating: IPX7

GHC 50 Marine Autopilot Instrument

• Dimensions: 4.13” x 4.51” x 2.01” (105 x 140 x 51 mm)
• Touchscreen: Yes
• Display resolution: 800 x 480
• Display type: WVGA
• Weight: 11.57 oz (328 g)
• Water rating: IPX7
• Mounting options: Flat or flush

Every Captain Needs A Co-Pilot

Designed for small gasoline boats this Reactor 40 kicker autopilot gives an extra hand fish and explore paradise worry-free.

• This Reactor 40 kicker autopilot is the perfect companion for any small gasoline-powered boat.
• Sit back and relax. With this autopilot maintain heading hold and stay on course.
• Not just getting an autopilot; a convenient floating handheld remote too.
• Easily fine-tune autopilot throttle settings with the touch of a button.
• Combine with a compatible Garmin chartplotter and control the autopilot from anywhere on the boat.
• The GHC 50 autopilot instrument enhances the autopilot experience.

Plot Course to Paradise

Autopilot Compatibility: This kicker autopilot works for boats with small gasoline outboard motors up to 25 horsepower1.

Stay on Course: Whether fishing or just taking a sailboat out of the marina this autopilot helps maintain heading hold and route to keep the boat on course – even against wind waves or heavy current.

Easy-to-Use Remote Control: The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright sunlight-readable display. Quickly and easily control throttle settings as well as drop to idle speeds when netting a fish or coming up to a mooring.

Includes GHC 50: Combine the Reactor 40 autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to the helm. Plus the GHC 50 shares data and settings with Garmin MFDs and other installed Garmin devices.

Includes Stainless steel tilt tube: Less susceptible to corrosion when used in saltwater this stainless steel tilt tube is a direct replacement for the standard mild steel tubes supplied with common engines.

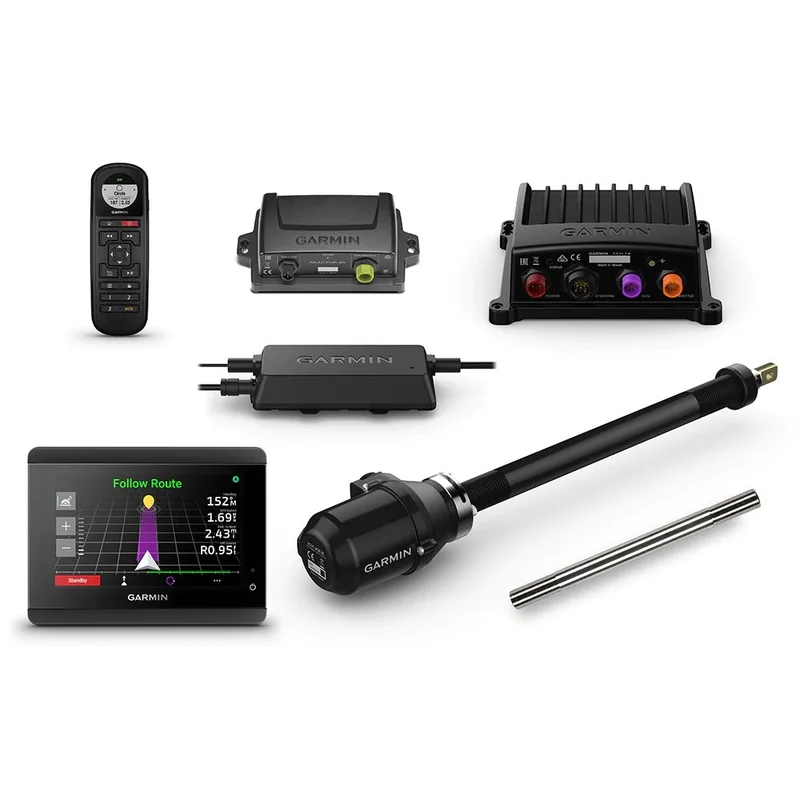

In the Box

• GHC 50 Marine Autopilot Instrument
• CCU (Course computer unit)
• ECU (Electronic control unit)
• ECU (Electronic control unit) power cable
• ECU to CCU interconnect cable
• Steering Actuator
• Stainless steel tilt tube
• Throttle Actuator
• Autopilot remote
• NMEA 2000 drop cable (2 metres)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation
