Description

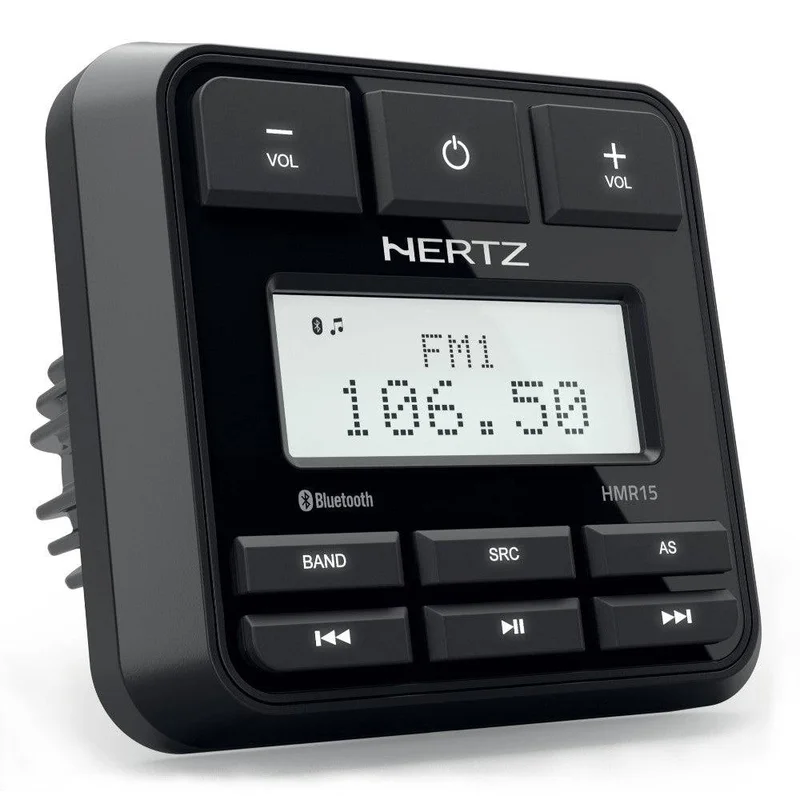

The Hertz HMR 15 source features a minimalist square-shaped design, perfectly in line with the latest trends in the most prestigious navigation instruments. The centerpiece is a generous display with the large marine-grade pushbutton panel symmetrically distributed in the lower and upper parts.
- 3 EQ preset created by Hertz audio engineer
- Minimalist square-shaped design, perfectly in line with the latest trends in the most prestigious navigation instruments
- Generous display with the large marine-grade pushbutton panel
- Bluetooth 5.0 to stream high-quality audio from your favorite mobile device
SpecificationDatasheetManual
Technical Specifications
X
| General | |
|---|---|
| Display | 2.8” Dot Matrix display |
| Peak Power @ 4Ω | 4 x 50W |
| Front Panel IP Rating | IP66 |
| Line Outs | 2 x L+R (Front and Rear) |
| Subwoofer Out (RCA) | 1x L+R (LPF: 80, 120,160 Hz) |
| Aux Input (RCA) | 1x L+R |
| Equaliser | Bass – Treble |
| EQ. Preset | 3 |
| Sources | |
|---|---|
| Tuner | AM/FM (EU/US) |
| USB | Yes (1A) |
| Bluetooth | 5.0 Audio streaming |
| Remote Control | HMC U1 (up to 3) |
| Size & Mounting | |
|---|---|
| Unit Size mm (in.) | 126 x 114 x 96.5mm (4.96 x 4.49 x 3.8″) |
| Mounting Hole size Ø | 89.5mm (3.52″) |
| Mounting Depth | 72mm (2.83″) |
| Mounting Method | Panel mount (4 screws); U-Bracket |
The Hertz HMR 15 source features a minimalist square-shaped design, perfectly in line with the latest trends in the most prestigious navigation instruments. The centerpiece is a generous display with the large marine-grade pushbutton panel symmetrically distributed in the lower and upper parts.
Pure Marine Design – The HMR 15 features IP66 protection grade, ASTM-D4329 standards for UV resistance, and ASTM-B117 for salt fog operability, giving unstopped pleasure season after season.
Connectivity – USB 2.0, Aux-In, AM/FM, Bluetooth 5.0
