Description

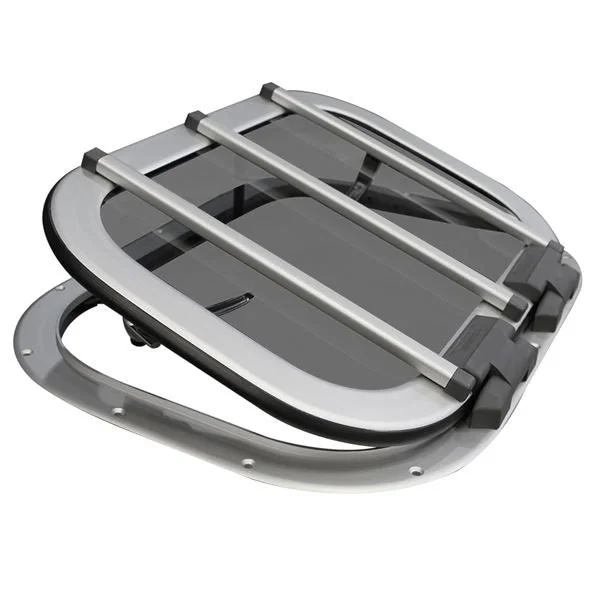

Houdini hatches are available in 6 sizes. The Houdini Super 50 deck hatch is the standard hatch and is available ex-stock.
The standard specification:
● Anodised aluminium
● Four alloy safety bars
● 6mm grey tinted toughened glass
● Stay arm
Other specifications:
● Available for special order and pricing. These include colour polyester powder coating, a matt gold option, clear glass or adjustable stay arms.
Chrome or polished finishes are not available.
Installation
All hatches must be fitted to a flat surface and bedded down on a good quality non-setting mastic. The outer flange is drilled and countersunk for no.8 self-tapping screws or M5 machine screws.
| Code | Type |
Aperture Size (mm) |
Corner Radius (mm) |
Overall Size (mm) |
Glass Opening Size (mm) |
Ventilation Stay |
Optional Adj Stays |
| 35010 | 1 | 250 x 250 | 75 | 284 x 284 | 220 x 220 | Yes | No |
| 35020 | 2 | 350 x 200 | 75 | 384 x 234 | 320 x 170 | Yes | No |
| 35030 | 3 Mini | 450 x 320 | 100 | 484 x 354 | 420 x 290 | Yes | No |
| 35040 | 4 | 500 x 370 | 100 | 534 x 404 | 470 x 340 | Yes | No |
| 35050 | 5 Super 50 | 500 x 500 | 100 | 534 x 534 | 470 x 470 | Yes | Yes |
| 35060 | 6 | 620 x 620 | 100 | 654 x 654 | 590 x 590 | No | No |
MPN: Hatch 1
MPN: Hatch 2
MPN: Mini Hatch
MPN: Hatch 4
MPN: Special
MPN: Hatch 6
