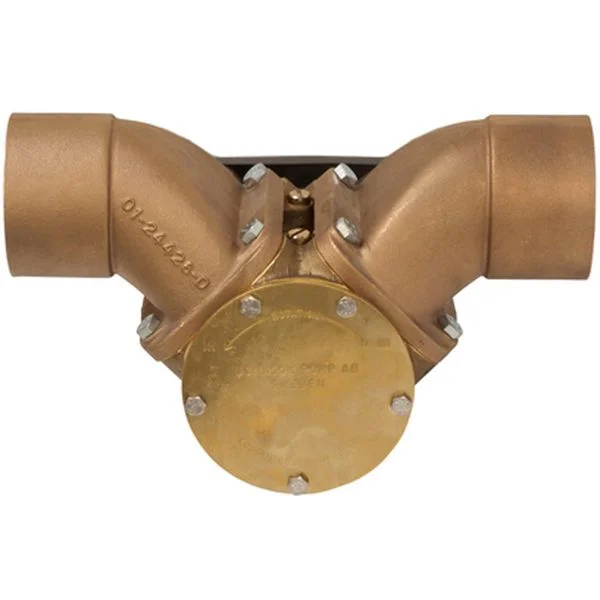

Johnson F95B-5000 Extra Heavy Duty Flexible Impeller Pump (2-1/2″ BSP)

Description

Johnson F95B-5000 Extra Heavy Duty High Flow Electro Magnetic Clutch Pump.

With an electro-magnetic clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. When combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage. The automatically controlled pump has 2-1/2″ ports (625 l/min) that can be fitted vertically or horizontally, and is suitable for a 12V or 24V clutch. The shaft is mounted with permanently lubricated double ball bearings.

Wearing parts are easily replaceable and service kits are available for all standard models.

Clutch and Vacuum Switch must be purchased separately.

Johnson 10-13143-99 Pump Spare Parts:

Service Kit: 09-46371

Impeller: 09-820B

Cam: 01-35744

Cam Screw: 01-46794-09

Seal: 09-0.2247.018

Gasket/O-ring: 0.2172.142

End Cover: 01-35284-2

End Cover Screw: 0.0138.134

Wear Plate: 01-42423

Shaft: 01-35700

Bearing: 0.3431.743

Shaft Drive End Bearing: 0.3431.043

Bearing Seal: 0.2233.008 / 0.2230.322

Motor: 0.3454.001 = 12V 2xA, 0.3454.002 = 24V 2xA, 0.3454.003 = 12V 1xB, 0.3454.004 = 24V 1xB

Specifications

Manufacturer Part Number: 10-13143-99
