Description

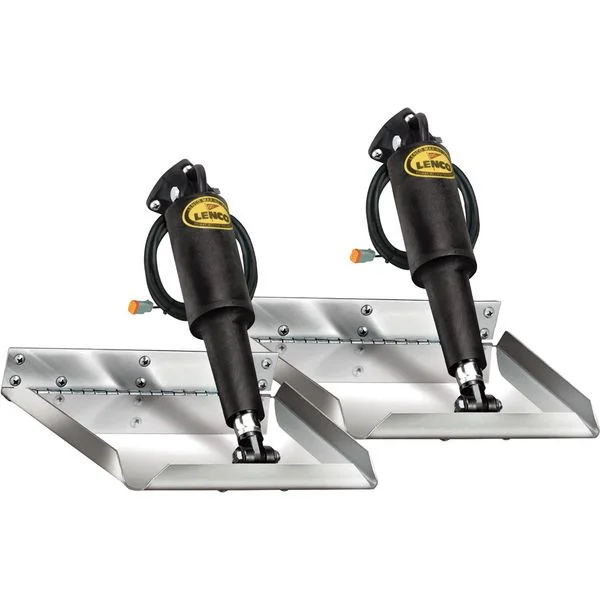

Lenco 15116-101 has all the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12” (30.5 cm) blades giving them a 3” (7.6 cm) lower mounting height. Boat Lengths 17’ (5.18 m) to 30’ (9.14 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1” (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Lenco trim tab kit contents:
– 2x 12-gauge stainless steel Electro-Polished blades
– 2x 15054-001 12-Volt actuators with 6′ (1.8 m) leads and Deutsch connectors
– 2x 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
– 2x 15085-001 upper mounting brackets with gland seal
– 2x 50014-001 lower mounting brackets
– Lenco owner’s/installation manual
– Stainless steel mounting hardware
Specifications
| Material | Electro-Polished Stainless Steel 304 |
| Primary Construction | Stainless Steel 304 |
| Suitable For | Vessels under 7 Metres / 22.9 feet|Vessels under 12 Metres / 39.4 feet |
| Brand | Lenco |
| Application | 17’ – 30’ (5.18m – 9.14m) Boats |
| Voltage | 12V DC |
| Contents | 2 Electro-Polished Stainless steel blades, 2 Actuators 12V, 2 extension wiring harnesses, 2 Upper & 2 Lower Mounting Brackets, Owner/installation manual & Mounting hardware |
| Height | Hinge: 2″ (5.1 cm), Min Transom: 11” (27.9 cm) |
| Width | 12″ |
| Length | 12″ |
| Thickness | Blade: 2.6mm (12 Gauge) |
| Warranty | 3 Years |
Manufacturer Part Number: 15116-101
