Description

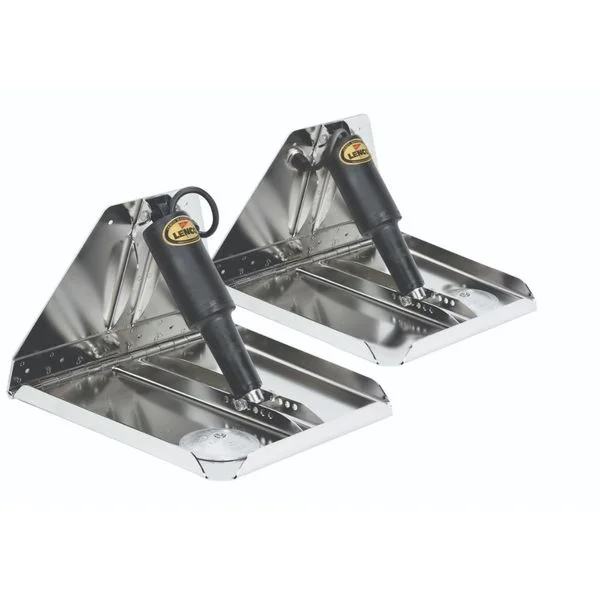

Lenco 15041-101 is designed and built for the boats that need extra strength to support them in rougher water at higher speeds. Boat lengths 18′ (5.5m) to 42′ (12.8m).
Blades have 1″ (2.5cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4″ (6.4mm) diameter hinge pin.
Full transom back plate with welded on stainless steel upper & adjustable lower actuator mounting brackets, 5/16″ (0.8cm) stainless steel mounting bolts & mechanical strain-relief cable seals. 3.75″ (9.5cm) sacrificial anodes installed.
HD Trim Tab Kits include:
– 2x 12-gauge 304 stainless steel electro-polished blades
– 2x (Single) XD Extreme Duty actuators with 6′ (1.8m) leads and Deutsch connectors
– 2x Actuator extension harnesses to be purchased separately
– Lenco owner’s/installation manual
Boat-mounting hardware to be supplied by the customer. Switch kits sold separately.
Specifications
| Suitable For | Vessels under 12 Metres / 39.4 feet|Vessels under 7 Metres / 22.9 feet |
| Brand | Lenco |
| Application | Boats 18′ – 34′ |
| Voltage | 12V DC |
| Height | Transom: 10.5″ (26.7cm) minimum |
| Width | 12″ |
| Length | 12″ |
Manufacturer Part Number: 15041-101
