Description

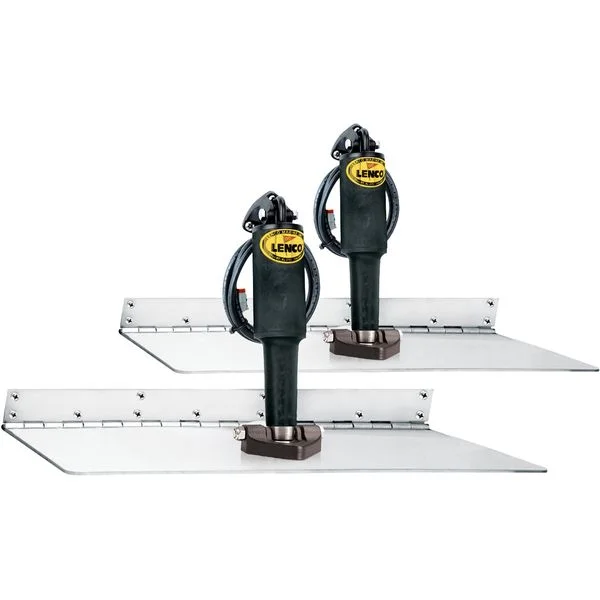

Lenco 15026-101 Super Strong trim tab kit for sport fishing, large cruising and commercial vessels. This trim tab has a completely flat blade design which reduces spray giving you a clean, dry ride. Boat lengths 24′ (7.3m) to 40′ (12.2m). Blades are constructed of 7 gauge (4.6 mm) laser cut 304 stainless steel with 3/8″ (9.5 mm) diameter hinge pin. High impact corrosion proof upper and lower mounting brackets with mechanical gland cable seal, 5/16″ (.8 cm) upper and 3/8″ (9.5 mm) lower stainless steel mounting bolts. 3.75″ (9.5 cm) sacrificial anodes installed.
Lenco trim tab kit contents:
– 2x 7-gauge stainless steel standard finish blades
– 2x 15063-002 24-Volt XD Extreme Duty actuators with 6′ (1.8 m) & Deutsch connectors
– 2x 15140-001 120 Lower Mounting Brackets
– Lenco owner’s/installation manual
– Stainless steel mounting hardware
Note: Actuator extension harnesses not in kits, must be purchased separately (2 required)
Specifications
| Material | Stainless Steel 304 |
| Primary Construction | Stainless Steel 304 |
| Suitable For | Vessels under 12 Metres / 39.4 feet |
| Brand | Lenco |
| Application | 24′ – 40′ Boats |
| Voltage | 24V DC |
| Contents | 2 Stainless steel blades, 2 XD Extreme Duty actuators 24V, 2 Lower Mounting Brackets, Owner/installation manual & Mounting hardware |
| Width | 18″ |
| Length | 12″ |
| Thickness | Blade: 4.6mm (7 Gauge) |
| Warranty | 3 Years |
Manufacturer Part Number: 15026-101
