Description
Lenco 15032-101 offers the same features as their single system, this series gives you a longer blade design with dual actuator support for large vessels that need extra lift. Boat lengths 45′ – 70′. Blades are constructed of 7 gauge (4.6 mm) laser cut 304 stainless steel with 3/8″ (9.5 mm) diameter hinge pin. High impact corrosion proof upper and lower mounting brackets with mechanical gland cable seal, 5/16” (.8 cm) upper and 3/8” (9.5 mm) lower stainless steel mounting bolts. 3.75” (9.5 cm) sacrificial anodes installed.

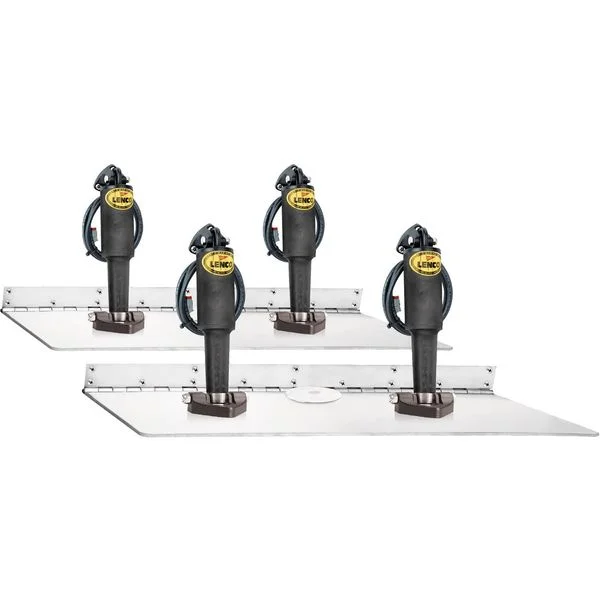

Lenco trim tab kit contents:
– 2x 7-gauge stainless steel standard finish blades
– 4x 15063-002 24-Volt XD Extreme Duty actuators with 6’ (1.8 m) & Deutsch connectors
– 4x 15140-001 120 Lower Mounting Brackets
– Lenco owner’s/installation manual
– Stainless steel mounting hardware
Note: Actuator extension harnesses not in kits, must be purchased separately (4 required)
Specifications
| Material | Stainless Steel 304 |
| Primary Construction | Stainless Steel 304 |
| Suitable For | Vessels under 20 Metres / 65.6 feet|Vessels under 50 Metres / 164 feet |
| Brand | Lenco |
| Application | 45′ – 70′ Boats |
| Voltage | 24V DC |
| Contents | 2 Stainless steel blades, 4 XD Extreme Duty actuators 24V, 4 Lower Mounting Brackets, Owner/installation manual & Mounting hardware |
| Width | 36″ |
| Length | 16″ |
| Thickness | Blade: 4.6mm (7 Gauge) |
| Warranty | 3 Years |
Manufacturer Part Number: 15032-101
