Description

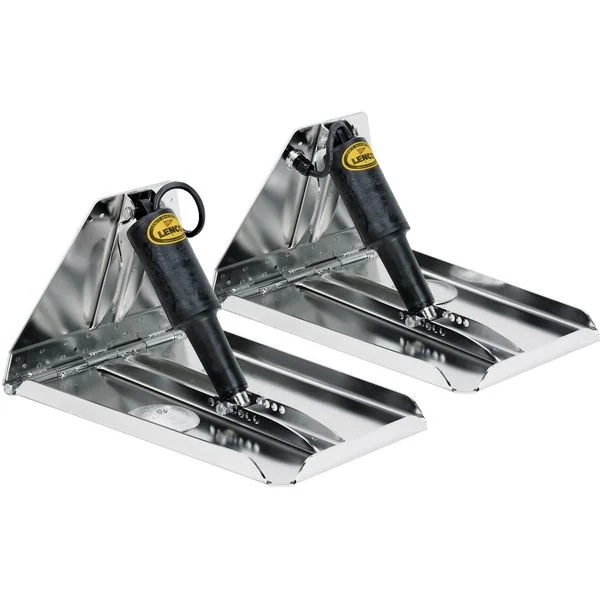

Lenco 15045-101 trim tab kit is the only single actuator Extreme Duty design offered. This trim tab is similar to Lenco’s Heavy Duty Performance series with a thicker, stronger blade for those boaters who run hard in extreme conditions. Boat lengths 20’ (6.1 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 10 gauge (3.4 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 3/8” (9.5 mm) diameter hinge pin. Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8” (9.5 mm) stainless steel mounting bolts. 3.75” (9.5 cm) sacrificial anodes installed.
Lenco trim tab kit contents:
– 2x 10-gauge stainless steel Electro-Polished blades
– 2x 15056-001 XD Extreme Duty actuators with 6′ (1.8 m) leads & Deutsch connectors
– Lenco owner’s/installation manual
Note: Boat-mounting hardware to be supplied by the customer. Actuator extension harnesses are available to be purchased separately (2 required).
Specifications
| Material | Electro-Polished Stainless Steel 304 |
| Primary Construction | Stainless Steel 304 |
| Suitable For | Vessels under 7 Metres / 22.9 feet|Vessels under 12 Metres / 39.4 feet|Vessels under 20 Metres / 65.6 feet |
| Brand | Lenco |
| Application | 20′ – 40′ (6.1m – 12.2m) Boats |
| Voltage | 12V DC |
| Contents | 2 Electro-Polished stainless steel blades, 2 XD Extreme Duty actuators 12V, Owner/installation manual |
| Height | Transom: 10.5″ (26.7cm) minimum |
| Width | 12″ |
| Length | 17″ |
| Thickness | Blade: 3.4mm (10 Gauge) |
| Warranty | 3 Years |
Manufacturer Part Number: 15045-101
