Description

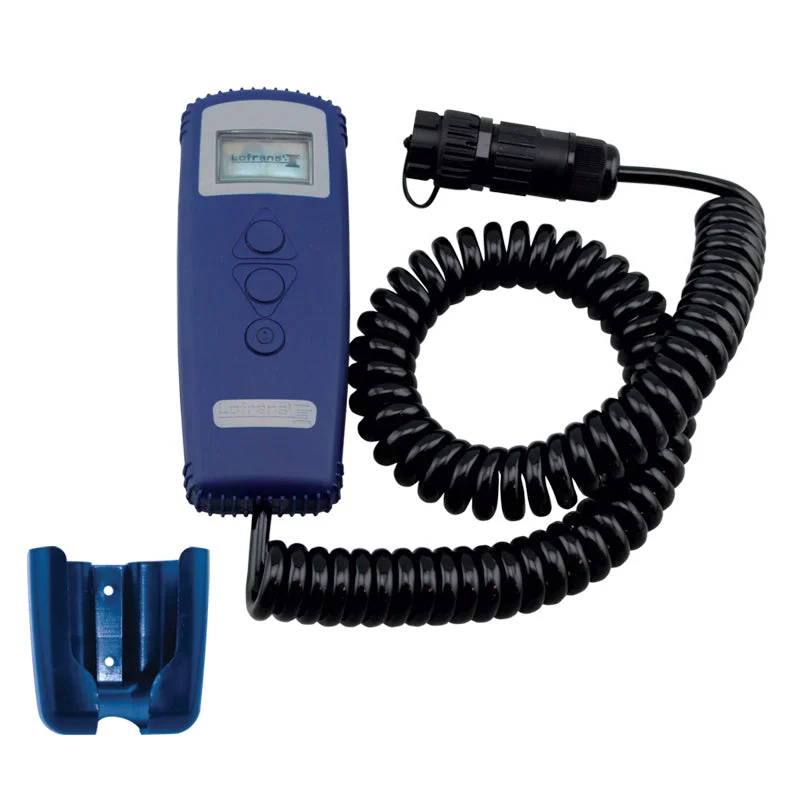

This remote chain counter model THETIS 5003 has been specifically designed to give the full control in anchoring. It’s a reliable and practical instrument, technologically advanced, specifically design for use in marine environments.
The external casing, rated with IP66 and supplied with waterproof plug and socket rated IP67. The extending flexible cable (approximately 4 metres) gives the maximum freedom on board during anchoring manoeuvring.
Provided with an evolved microprocessor that offers a series of advantages for full control of the anchoring.
Reinforced covers & buttons.
- Chain speed indicator / mooring length in meters or feet
- Voltage indicator
- Up alarm sensor
- Switch on button / Key tones adjustment
- High vision LCD display / Backlit display screen / Eight
- level of contrast
- Six language menu (IT, EN, FR, DE, ES, GR)
- Able to control free fall windlasses
- Parallel connection
- Cradle included
| Code | Weight | Dimensions | Voltage | Command Transmission | Number of buttons | Operative Temperature | IP Protection rated | Max contacts Amperage | |
|---|---|---|---|---|---|---|---|---|---|
| 73632 | LOFRANS HH Remote control chaincounter THETIS 5003 | 710 | 154x59x38 | 12 – 24Vdc | Wire | 3 | -10 : +60 | 67 | 2 |
More Info/ Document Downloads (Click on links below to Open)
| Manual_THETIS 5003 |
|---|
| THETIS Series AND IRIS II_Leaflet_ΕΝ |
| THETIS Series AND IRIS II_Leaflet_IT |
