Description
The Lowrance Elite Fishing System (FS) gives you access to their full line-up of fishfinding tools, including ActiveTarget live sonar, Active Imaging and compatibility with a wide range of chart options, to help you make the most of your time on the water.

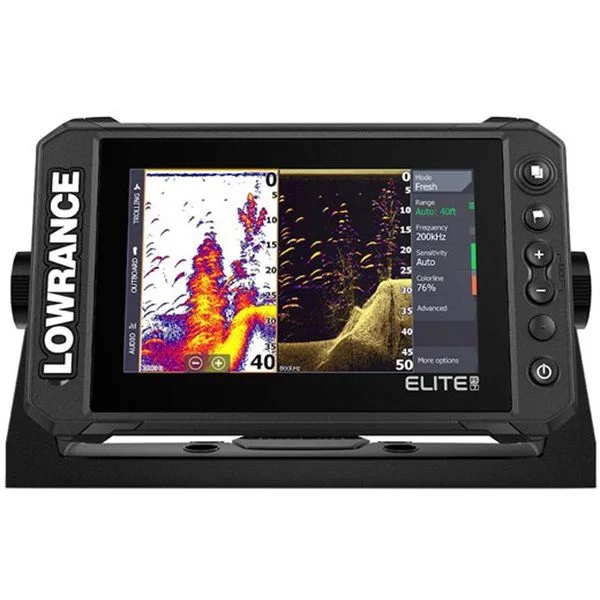

The Elite Fishing System (FS 7) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. Elite FS gives you all the tools you need to find and catch more fish: from ActiveTarget live sonar and extreme high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging to compatibility with a wide range of chart options.
Lowrance 000-15702-001 allows you to see structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Fish smarter when you know exactly what fish are doing, in real time, with ActiveTarget Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.
Elite FS displays offer compatibility with a wide range of chart options, including C-MAP, Navionics (and more) as well as coming preloaded with a worldwide basemap.
Key Features
ActiveTarget Live Sonar ready
Active Imaging 3-in-1 ready
FishReveal
Worldwide basemap & wide range of chart options, including C-MAP, Navionics & more
C-MAP Easy Routing, Navionics Auto-routing capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000 & Ethernet connectivity
Full touchscreen control of Power Pole anchors & Ghost Trolling Motor
Specifications
| Brand | Lowrance |
| Screen Size | 7″ |
| Series | Elite |
| Model | Elite FS 7 |
| Voltage | 12V DC (10.8V – 17V DC) |
| Cut Out | 227.3mm x 123.7mm (8.95″ x 4.87″) |
| Amps | Consumption at 13.8V DC with Full Backlight: Typical: 2.0A, Maximum: 2.0A |
| Fuse | 3A recommended |
| Contents | HDS/Elite/Hook/Mark Power Only Cable, 3x 3 amp Fuses, HDS-7 LIVE / Elite FS 7 Bracket, Elite FS 7 Sun Cover |
| Approvals | CE, Conforms to ACMA Radiocommunications Electromagnetic Compatibility 2017 & Short Range Devices 2014 |
| Height | Dash mount: 147.4mm (5.80″), Gimbal mount: 162.4mm (6.39″) |
| Width | Dash mount: 237.8mm (9.36″), Gimbal mount: 265.6mm (10.45″) |
| Depth | Overall: 108.4mm (4.27″), Above Surface: 13.0mm (0.51″), Behind panel: 95.4mm (3.76″) |
| Weight | 0.90kg (1.90lbs) |
| Operating Temperature | -15°C to 55°C (5°F to 131°F) |
| Temperature Range | Storage: -20°C to 60°C (4°F to 140°F) |
| Warranty | 1 Year + 4 additional years of upgrade options (totaling 5 years) |
| Mounting | Gimbal Bracket & Dash Flush Mount |
More Info/Downloads
elite fs installation guideelite fs quick start guideelite fs user manualelite fs 7 mounting template
Manufacturer Part Number: 000-15702-001
