Description

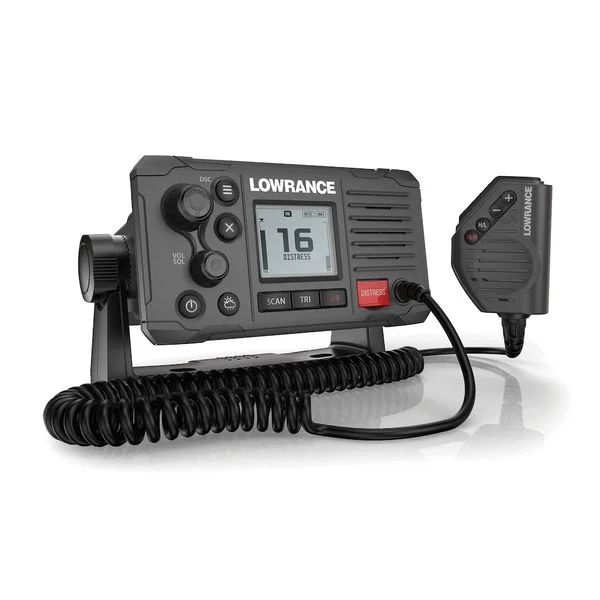

Communicate clearly with the Link-6S dependable Class D DSC Approved marine VHF radio.
Intuitive Controls – A rotary channel dial facilitates quick channel selection, while large and amply spaced buttons provide quick access to all key functions. Dedicated Channel 16 keys enable instant access to the emergency channel, and are included on both the radio’s front panel and its four-button fist mic.
Class D DSC Approved – Class D DSC compliant for automated distress calling, including position when connected to a compatible GPS receiver.
Tri-Channel Watch Function – Scan between the current channel, emergency channel 16, and another user-configurable priority channel (non US models). On US models, scan between the current channel and emergency channels 16 and 9.
All International Channels – The Link-6S is designed for global use and supports all international channels including USA and Canada.
My Channel Mode – Select your favorite channels for quick and easy access. A long press on the channel dial enters My Channel Mode, where you can cycle through just your selected favourites using the rotary channel dial.
Multiple Scan Modes – Scan through all available channels or just your selected favourites. In either scan mode, emergency channels can optionally be given priority to reduce the chance of missing distress calls or other urgent safety messages.
Easy Bracket or Flush-Mount Installation – An included gimbal bracket enables table-top, overhead, or bulkhead installation. Flush-mount installation is also supported, with an easy mount-from-front solution.
Product contents:
• Link-6S VHF Radio
• Mounting Bracket
• Knobs and Mic Clip
Key Features
Internal GPS
High visibility LCD with inverted night mode
Intuitive rotary & keypad controls
4-button fist microphone
Class D DSC Approved
Dedicated Channel 16 keys
Tri-channel watch function
All international channels
Multiple scan modes
Easy bracket or flush-mount installation
Specifications
| Connections | VHF Antenna: SO-239 (50 ohm), GPS Antenna: SMA (female) |
| Frequency | Transmitter: 156.025 – 157.425 MHz, Receiver: 156.050 – 163.275 MHz |
| Brand | Lowrance |
| Voltage | 12V DC, Nominal: 13.6V, Low Battery Alert: 10.5V (+/- 0.5V), Over Voltage Protection: >15.8V (+/- 0.5V) |
| Fuse | 8A, Glass type 3 AG; 32mm (1.25″) |
| Contents | Link-6S VHF Radio, Mounting Bracket, Knobs and Mic Clip |
| Approvals | CE, EN 50385:2017, EN 62368-1:2014 A11:2017, EN 60945:2002, EN 301 489-1 V2.2.3, EN 301 489-19 V2.1.1, EN 301 843-1 V2.2.1, EN 301 843-2 V2.2.1, EN 303 413 V1.1.1, EN 300 698 V2.3.1, EN 301 025 V2.2.1 |
| Consumption | Transmit: ≤ 6A at 25W / 1.5A at 1W, Receive: < 450mA in standby |
| Temperature Range | -20ºC to +55ºC (-4ºF to 131ºF) |
Manufacturer Part Number: 000-14493-001
