Description

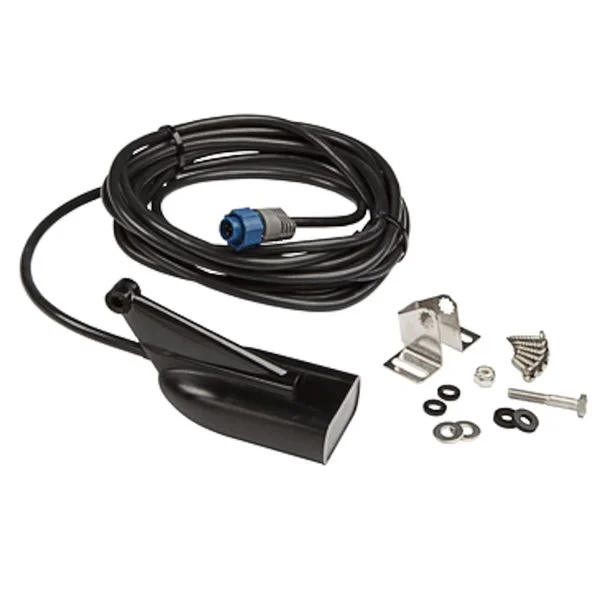

High-frequency 455/800 kHz DownScan Imaging provides a life-like representation of the water column, bottom, and any structure beneath the vessel – allowing the user to see fish, rocks, weeds, and wrecks clearly pictured on a multifunction display.
Able to measure both depth and temperature, the HDI Skimmer 455/800 simplifies installation and requires just one connection to an echosounder module or multifunction display.
The HDI Skimmer 455/800 is suitable for transom or trolling-motor mounting with any hull type. Transom-mounted transducers are designed for smaller outboard and I/O boats, and are well suited to planing hulls.
Transom mounting offers simple installation and maintenance, and the transducer can be adjusted easily to compensate for transom angle. Trolling motor-mounting is quick and easy, providing superior performance to in-hull (shoot-thru) installations while requiring no holes to be drilled in the hull or transom.
Key Features
455 kHz with 6.4° beam width
800 kHz with 12° beam width
Up to 90 m (300 ft) range at 455 kHz
1 internal broadband ceramic
Transom/Trolling Motor-mounted
Suitable for any hull
Ideal for outboards and I/O vessels up to 8 m (25 ft) in length
Recommended for use with the SonarHub sounder module & Simrad NSS evo2 multifunction displays
Cable length 6m (20ft)
Specifications
| Brand | Navico |
Manufacturer Part Number: 000-10976-001
