Description

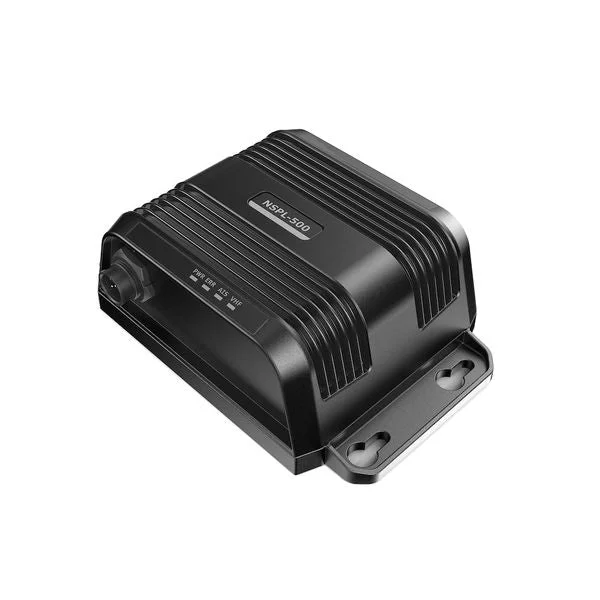

The Navico NSPL-500 antenna splitter saves you the hassle of installing a costly second antenna by using your existing single antenna with VHF/AIS/FM. When combined with the NAIS 500 AIS system, you can see and be seen on the water, whether tackling busy shipping lanes or crowded ports.
Plug and Play – FM connector is suitable for SonicHub 2 or any compatible stereo FM unit.
The lightweight unit weighs just 260 grams and is waterproof to IPX7 standard.
Low Power Consumption – Ideal for sailboats or power boats, the NSPL-500 features a low average power consumption of less than 150 mA at 12V DC.
Wide Voltage Range – The NSPL-500 is suitable for 12V or 24V DC systems with a wide range of supported input voltages from 9.6V to 31.2V DC.
High Performance with Low Loss – The NSPL-500’s high-performance design means no insertion loss on AIS and VHF receive, and low insertion loss on AIS and VHF transmit.
Key Features
Wheelmark Approved
FM connector for SonicHub 2 or any compatible stereo FM unit
Lightweight Unit at 260 grams
IPX7 standard
Power consumption of < 150mA at 12V DC
For 12V or 24V DC systems, supporting a wide range of input voltages (9.6V – 31.2V)
No insertion loss on AIS / VHF receive
Low insertion loss on AIS / VHF transmit
Specifications
| Frequency | VHF and AIS: 156 – 162 MHz |
| Brand | Navico |
| Voltage | 9.6V – 31.2V DC |
| Wattage | AIS Maximum Input: 12.5W, VHF Maximum Input: 25W / Minimum Input: 0.5W |
| Approvals | CE, EU Wheelmark (MED) Approved |
| Consumption | < 150mA at 12V |
| Temperature Range | Operating: -15°C to +55°C (5ºF to 131ºF) |
| Dimensions | Distance between mounting hole centres: 132.5mm x 47mm |
Manufacturer Part Number: 000-13612-001
