Description

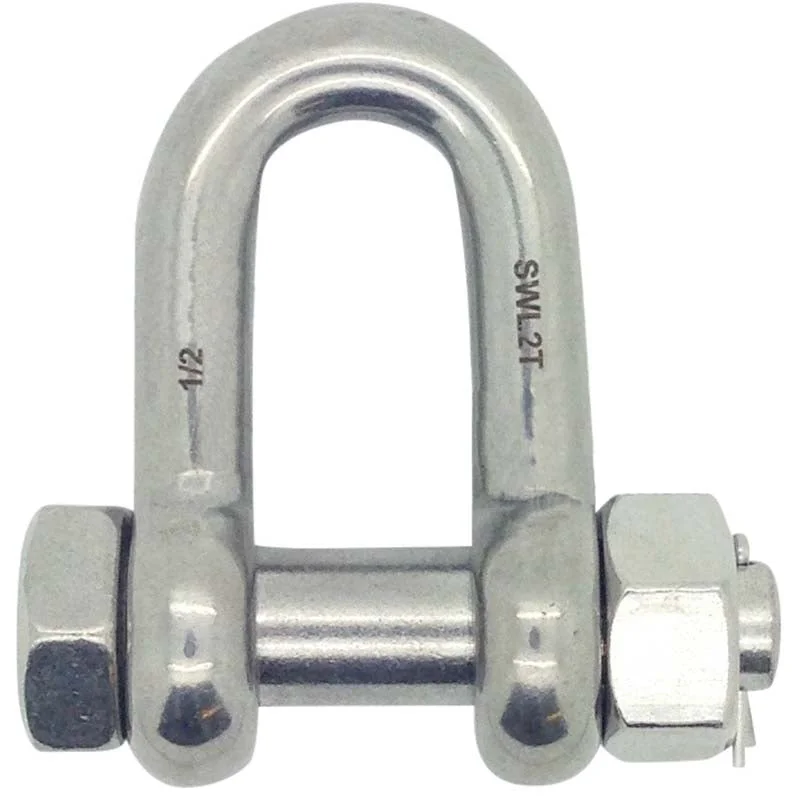

Standard Load Rated Stainless St Safety D Shackles, c/w safety nut and pin
Load rated stainless steel shackles featuring a smaller jaw width and larger diameter pin making them size for size stronger than standard shackles. Manufactured from AISI 316 stainless offering excellent corrosion resistance, especially in marine environments. Ideal for secure lifting and mooring applications.
- 316 stainless steel
Spec Sheet
| Part | Ø D1 Body Inch (mm) |
Ø D2 Pin Inch (mm) |
L mm |
W mm |
WLL Tons |
RRP Inc VAT |
Unit | |
|---|---|---|---|---|---|---|---|---|
| ED-653010 | 5/16 (8) | 3/8 (10) | 27.0 | 13.50 | 0.75 | £9.98 | EACH | |
| ED-653011 | 3/8 (10) | 7/16 (11) | 31.0 | 17.00 | 1.00 | £12.88 | EACH | |
| ED-653016 | 1/2 (12) | 5/8 (16) | 42.0 | 21.00 | 2.00 | £24.72 | EACH | |
| ED-653020 | 5/8 (16) | 3/4 (19) | 51.0 | 27.00 | 3.00 | £45.04 | EACH | |
| ED-653022 | 3/4 (19) | 7/8 (22) | 61.0 | 32.00 | 4.00 | £72.83 | EACH | |
| ED-653025 | 7/8 (22) | 1 (25) | 72.0 | 37.00 | 5.00 | £102.01 | EACH | |
| ED-653027 | 1 (25) | 1 1/8 (27) | 81.0 | 43.00 | 6.00 | £149.02 | EACH |
