Description

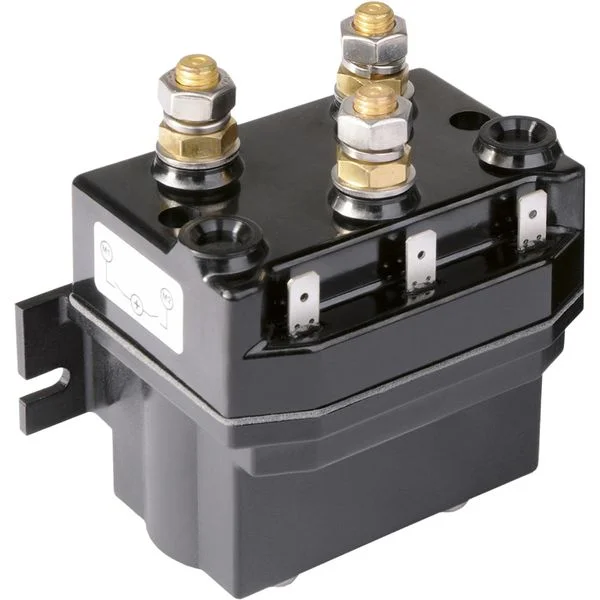

The Quick contactor unit T6315-12 is suitable to operate 12V windlass and capstan electric motors up to 150 amps. The contactor is extremely easy to install due to it’s external connections. Quick contactor features IP66 protection (excluding the terminals).
Specifications
| Brand | Quick |
| Voltage | 12V DC (Max. 48V) |
| Wattage | 2500W |
| Amps | Interruption Capacity: 800A at 48V DC, Working Intermittent Current (50% of work cycle): 150A |
| Fuse | Recommended: 2.5A Fast |
| Height | Excluding Terminals: 83.5mm (3-9/32″), Terminals: 23.1mm (29/32″), Bracket: 29mm (1-9/64″) |
| Width | 100.3mm (3-61/64″), Excluding Mounting Bracket 82.5mm (3-1/4″) |
| Depth | 66.5mm (2-5/8″), Excluding Mounting Bracket: 61.3mm (2-13/32″) |
| Weight | 850g (1.87 lb) |
| Dimensions | Distance Between Mounting Hole Centres: 86mm (3-3/8″) |
More Info/Downloads
quick contactor t6315 t6415 manual
Manufacturer Part Number: FTT631512000B00
