Description

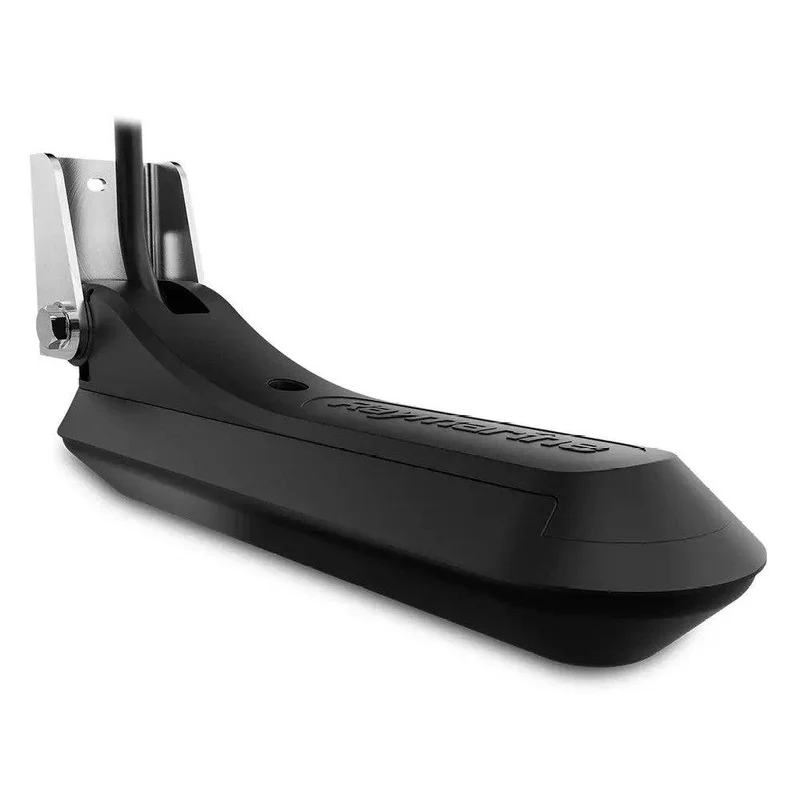

Raymarine’s RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.
- Sensors: Temperature sensor, AHRS (Attitude and Heading Reference System) sensor
- Sonar channels: RealVision Max 3D, SideVision, DownVision, Conical High/Low CHIRP 600W 50/200 kHz
- Beam width: 200 kHz: 12°
- Dimensions: Length: 256.6 mm (10.1″), Height: 120.5 mm (4.74″)
- Cable length: 8 m (26.2′)
- Weight (including brackets): 0.647 kg (1.42 lb)
Specification
Technical Specifications
X
| RealVision MAX 3D Sonar | |
|---|---|
| Sensors | Temperature sensorAHRS (Attitude and Heading Reference System) sensor |
| Sonar channels | RealVision MAX 3DSideVisionDownVisionConical High/Low CHIRP 600W 50/200 kHz |
| Beam width | 200kHz: 12° |
| Phyical | |
|---|---|
| Dimensions | Length: 256.6mm (10.1″)Height: 120.5mm (4.74″) |
| Cable length | 8m (26.2′) |
| Weight (including brackets) | 0.647Kg (1.4lb) |
| Enviroment | |
|---|---|
| Waterproof rating | IPX6 (surfaces exterior to hull only, IPX7, IPX8 |
| Storage temperature range | -20°C – 70°C (23°F – 158°F) |
| Operating temperature range | -2°C – 55°C (28.4°F – 131°F) |
| Sonar Range | |
|---|---|
| Sonar range | CHIRP Sonar: 0.6 – 549m (2′ – 1,800′)DownVision: 0.6 – 229m (2′ – 750′)SideVision: 0.6 – 183m (2′ – 600′)RealVision MAX 3D: 0.6 – 183m (2′ – 600′) |
See RealVision MAX In Action – Sonar Gallery
Click to enlarge images
×1/5RealVision MAX SideVision, DownVision, 3D, and traditional CHIRP sonar showing wrecks and fish targets2/5The RVM1600 and RVM-100 transducer with traditional CHIRP marking fish over 400′ (122 meters)3/5RealVision MAX SideVision, DownVision, and traditional CHIRP showing predator fish stalking bait fish above a wreck4/5RealVision MAX traditional CHIRP sonar separating fish targets from the sea bottom5/5RealVision MAX SideVision, DownVision, and traditional CHIRP sonar seeing wrecks and debris❮❯
Raymarine’s RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (A80479, sold separately.)
In The Box
- Escutcheon plate
- Cable clips x5
- 9 x Self tapper screw (4 x for escutcheon and 5 x for cable clips)
- 3 x Self tapper screw (for transducer mounting bracket installation)
- Transducer mounting bracket
- Cable connector kit, consisting of: O Ring, Split ring x 2 (1 x spare), Locking collar, Split ring fitting tool
- Documentation
- M10 x 65 serrated bolt
- M10 serrated nylock nut
- Transducer (including 8 m / 26.2 ft cable)
