Description

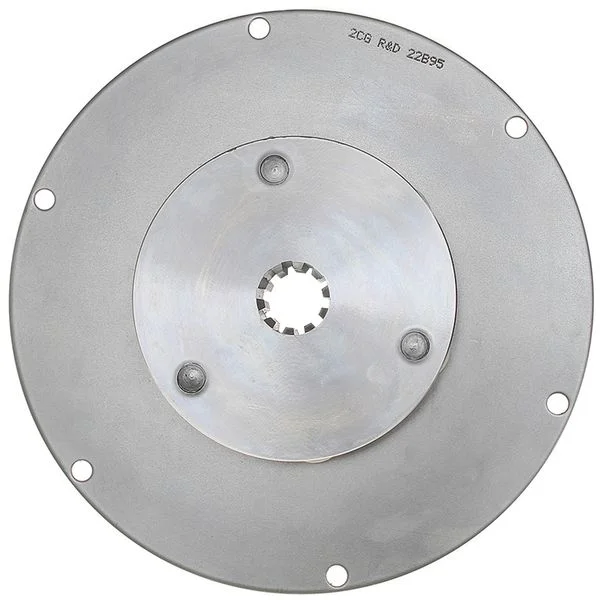

Spline for 10-Tooth DIN 5464 (PRM 80/120/150, Hurth 100/125) input shaft. Single stage ‘loop’ damper element. Back plate for mounting: 6x 8.1mm holes, 222.2″ PCD.
Specifications
| Bolt Hole PCD | 6 x 8.1mm (0.32″) on 222.25mm (8-3/4″) PCD |
| Gearbox Spline | 10 teeth B10 x 23 x 29 DIN 5464 (29mm diameter) |
| Torque | 135 Nm, 100 lbft |
| Brand | R&D Marine |
| Application | Beta Marine engines mated to gearboxes: PRM 80, 90, 120, 125 & 150 gearbox, ZF Hurth HBW 35, 40, 50, 100, 125 & 150 gearboxes, Technodrive TMC 30, 40, 50 & 60 gearboxes & Borgwarner 500. |
| Diameter | OD: 235mm (9-1/4″) |
| Country of Origin | United Kingdom |
Manufacturer Part Number: 22B95 DRIVE PLATE
