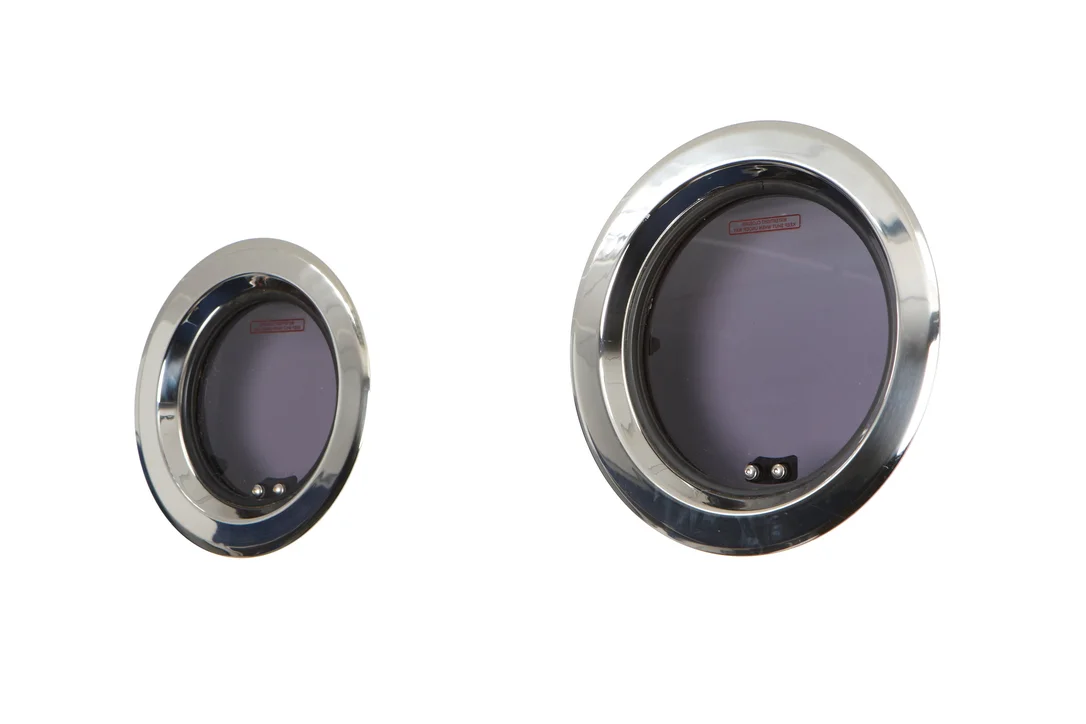

Round Stainless Steel Portlight with Grey Acrylic 250mm Diameter Grey Handles 30133000 by LEWMAR

Description

Round Stainless Steel Portlight with Grey Acrylic 250mm Diameter Grey Handles30133000 by LEWMAR

Lewmar’s stainless portlights feature polished stainless 316 outer frame. Inside the boat they are finished with a chrome or white plastic trim.

CE Approval
All Stainless Fixedlights presented on the website are CE Approved to the following levels
Sail Boat ; Catagory “A”, Area 2a
Power Boat; Catagory “B” Area 1

Mounting Instructions
Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.

• Portlights should be fitted to a flat surface with a maximum tolerance of 1mm
• Maximum hull thickness 24mm, minimum hull thickness 8mm
• Portlight opening is restricted on very thick hulls. Opening angle at 21mm hull thickness is 165
• All Portlights supplied with M5 x 20 screws (suit hull thickness 12-17mm)
• No Flyscreen available for the Round Stainless Portlight

Specification:

Standard Portlight Fixed – White Trim
