Description

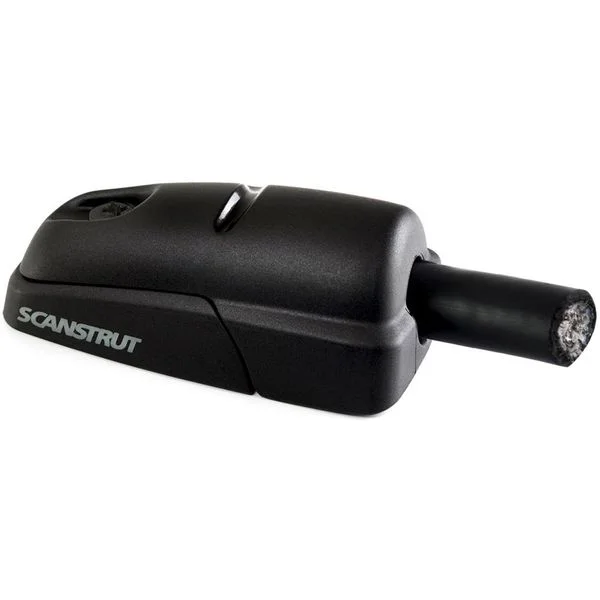

Scanstrut DS-H10-BLK waterproof deck seal for routing electrical cables. This black cable gland is made from UV stable glass filled nylon and has an attractive dome shaped design to provide a strong outer shell. This dome also provides an extra shield from water, although the watertightness of the gland comes from a tapered bung and a closed cell base seal.
This deck seal is easy to install, with no need to remove cable connectors. The gland is supplied with both pre-drilled and blank inner seals and also includes captive nuts to allow easy assembly and reliable repeat installations.
The Scanstrut DS-H10-BLK horizontal seal features a horizontal cable entry and is suitable for electrical cables between 6mm and 10mm diameter.
Specifications
| Material | Glass filled nylon |
| Brand | Scanstrut |
| Colour | Black |
| Height | 27mm (1.06″) |
| Width | 44.5mm (1.75″) |
| Length | 77.5mm (3.05″) |
| Diameter | 6-10mm Cable |
More Info/Downloads
scanstrut ds h10 installation instructionsscanstrut ds h10 technical drawing
Manufacturer Part Number: DS-H10-BLK
