Scanstrut DS-HD6-BLK Horizontal Double Cable Seal (5mm-6mm / Black)

Description

Scanstrut DS-HD6-BLK double cable seal was designed to eliminate time-consuming and sub-standard routing of solar panel cables. This seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats, campervans, and agricultural vehicles. Its low-profile design provides the best water ingress protection for the smallest mounting footprint in its class.

• Designed for solar panel installations

• Install 2 cables – 5mm (0.19″) and 6mm (0.23″) in any combination

• Compact footprint – just 54mm Wide, 63mm Long, 24mm High

• Makes it perfect for installing as close to the solar panel as possible

• Easy fit cable routing that cuts down your installation time through wood, metal and GRP

• IP68 watertight seal

• Black high impact plastic

• Includes 316 stainless steel fixings and a waterproof 3M gasket

• Clean and simple design

• The low-profile construction is impact-resistant and provides extra protection from water

• Captive nuts make for easy assembly and also allow for reliable repeat installations

• Scanstrut’s materials have been selected to be UV-stable and hard-wearing

• No messy sealant on bungs

• Constructed from premium marine-grade materials

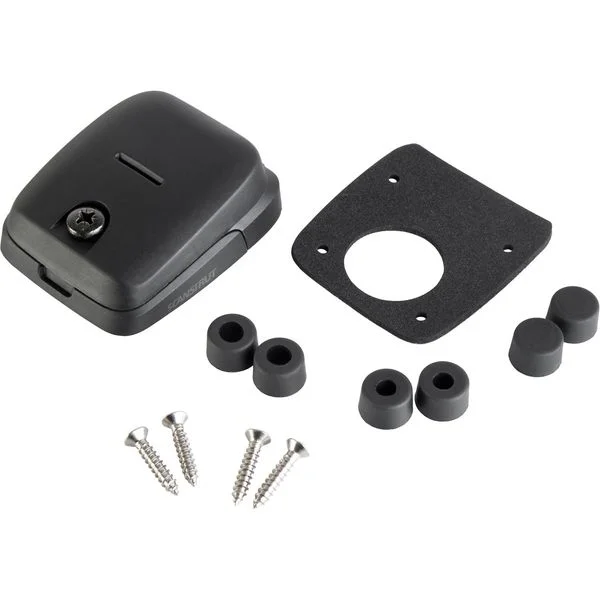

Includes 2x 5mm (0.20″) bungs, 2x 6mm (0.24″) bungs and 2x blanking bungs.

Specifications

More Info/Downloads

scanstrut ds hd6 installation instructionsscanstrut ds hd6 technical drawing

Manufacturer Part Number: DS-HD6-BLK
