Description

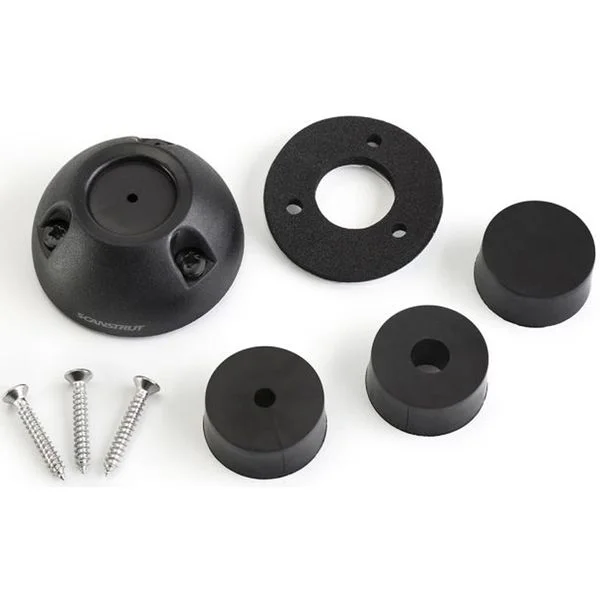

Scanstrut DS16-P-BLK waterproof deck seal for routing electrical cables. This black cable gland is made from UV stable glass-filled nylon and has an attractive dome shaped design to provide a strong outer shell. This dome also provides an extra shield from water, although the watertightness of the gland comes from a tapered bung and a closed cell base seal.
This deck seal is easy to install, with no need to remove cable connectors. The gland is supplied with both pre-drilled and blank inner seals and also includes captive nuts to allow easy assembly and reliable repeat installations.
The Scanstrut DS16-P-BLK Mini deck seal features a vertical cable entry and is suitable for electrical cables between 2mm and 8mm diameter.
Specifications
| Material | Glass filled nylon |
| Brand | Scanstrut |
| Colour | Black |
| Height | 19mm (0.75″) |
| Diameter | 39mm (1.53″) Diameter, 2-8mm Cable |
More Info/Downloads
scanstrut ds6 ds16 ds21 installation instructionscanstrut vertical cable gland technical drawing
Manufacturer Part Number: DS16-P-BLK
