Scanstrut LMB-A1 Self-Levelling Radar Mount (Aft Backstay / 2.6m)

Description

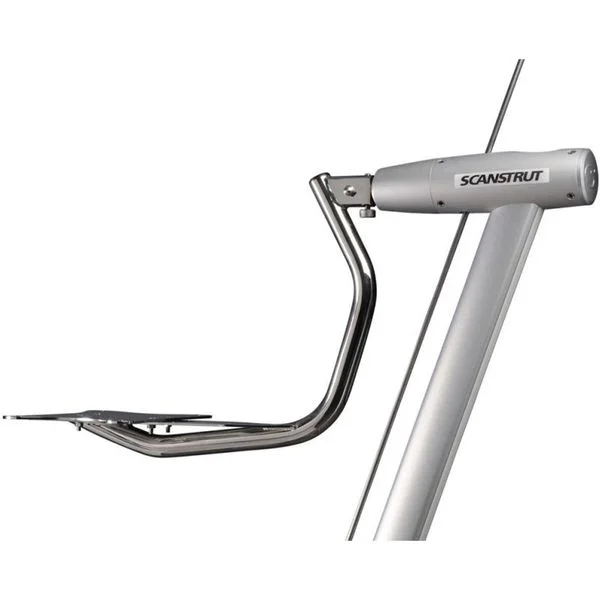

Maximize your Radar’s performance with Scanstrut LMB-A1 self-levelling radar mount, measuring 2.6m high and constructed from the best marine-grade aluminium. The aft leaning mount sits forward of the backstay, keeping your radar away from any interference and leaving a clear deck free from obstruction. The backstay radar mount is designed to fit the most up-to-date radars from Garmin, Raymarine and B&G, including:

Radar Radomes:

– B&G 3G/4G, HALO20, HALO20+ & HALO24

– Garmin Fantom 18, Fantom 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD & GMR40

– Humminbird HB 2124 CHIRP

– Lowrance 3G/4G, HALO20, HALO20+ & HALO24

– Nobeltec IR2-4D 25″ 4Kw

– Raymarine QUANTUM, QUANTUM 2, RD218, RD418 / RD418HD & RD424 / RD424HD

– Simrad 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12, HALO20, HALO20+ & HALO24

– Sitex RADARpc – 4D

– Hydraulic damping: The main levelling unit has a fine-tuned damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance-free and no power is required.

– Bespoke mounting pole: The 2.6m (8’6″) aluminium mounting pole is supplied in 2 x 1.3m lengths with a hidden joiner piece. Cables are routed down a cable channel for a neat install. Extension pieces are available.

– High strength universal base for mounting pole: Eliminates loading on backstay. The base can be deck, transom or chain-plate mounted.

– Suitable for any yacht: Stainless radome cradle has a fine tune adjustment for backstay angle and the product can be installed on both adjustable and split backstays.

– Nylon backstay bushing supplied: Clamps around the backstay allowing cable tension to be adjusted.

– Mount your radar higher: Additional 0.6m and 1.3m lengths are available to mount your radome higher.

Specifications

More Info/Downloads

lmb a1 lmb a2 installation instructions

Manufacturer Part Number: LMB-A1
