Description

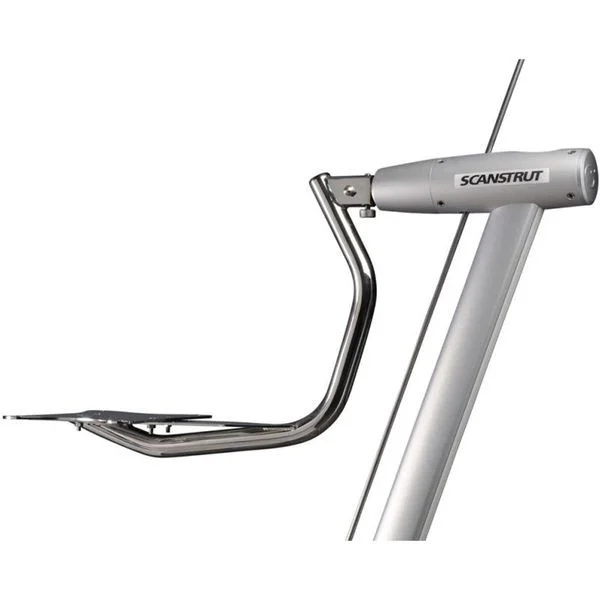

Maximize your Radar’s performance with Scanstrut LMB-A2 self-levelling radar mount, measuring 2.6m high and constructed from the best marine-grade aluminium. The aft leaning mount sits forward of the backstay, keeping your radar away from any interference and leaving a clear deck free from obstruction. The backstay radar mount is designed to fit the most up-to-date radars from Furuno, including:
Radar Radomes:
– Furuno 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18″) & NavNet (24″)
– Humminbird AS 21RD4KW
– Interphase Mini RE-1, RE-8 & RE-9
– JRC 1000, 1000mk2, 1066, 1500 & 1500mk2
– Koden 2kW 12″ & 4kW RB715A
– Lorenz 2kW
– Lowrance LRA-1800, RB714A & DX42
– Navman 8000 Series, 8084 & 8120 18″
– Nobeltec 2kW (20″)
– Northstar M series/8000i (18″)
– Seiwa SWR-1 & SWR-8
– Simrad GB40, NX40/45, NSE8/12, RB712A & DX42S
– Sitex MDS -1, MDS -8, MDS -9, MDS-12 & NKE-1066
– Techmarine T-72.01, T-72.02 & T-72.04
– Hydraulic damping: The main levelling unit has a fine-tuned damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance-free and no power is required.
– Bespoke mounting pole: The 2.6m (8’6″) aluminium mounting pole is supplied in 2 x 1.3m lengths with a hidden joiner piece. Cables are routed down a cable channel for a neat install. Extension pieces are available.
– High strength universal base for mounting pole: Eliminates loading on backstay. The base can be deck, transom or chain-plate mounted.
– Suitable for any yacht: Stainless radome cradle has a fine tune adjustment for backstay angle and the product can be installed on both adjustable and split backstays.
– Nylon backstay bushing supplied: Clamps around the backstay allowing cable tension to be adjusted.
– Mount your radar higher: Additional 0.6m and 1.3m lengths are available to mount your radome higher.
Specifications
| Material | Marine Grade Aluminium |
| Brand | Scanstrut |
| Height | 2600mm (8’6″) |
| Width | Base: 43.5mm (1.5″) |
| Length | Base: 55mm (2.2″) |
More Info/Downloads
lmb a1 lmb a2 installation instructions
Manufacturer Part Number: LMB-A2
