Description

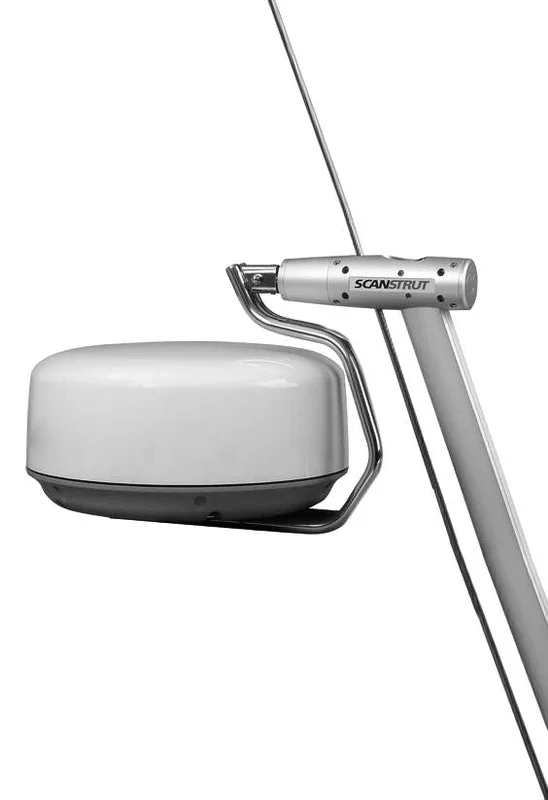

LMB-F2 Self-Levelling Radar Mount – Backstay

LMB-F2

Maximize your Radar’s performance

2.6m (8’6”) high, mounts forward of the backstay, keeping your radar away from any interference, leaving a clear deck free from obstruction. Constructed from the best marine-grade aluminium, designed to fit the most up to date radars from Furuno.

Product Information.

Hydraulic damping
The main levelling unit features a fine-tuned damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance-free and no power is required.

Bespoke mounting pole
2.6m (8’6”) aluminium mounting pole, supplied in 2 lengths with hidden joiner piece. Cables are routed down a cable channel for a neat install. Extension pieces are available.

High strength universal base for mounting pole
Eliminates loading on backstay. The base can be deck, transom or chainplate mounted.

Suitable for any yacht
Stainless radome cradle has a fine tune adjustment for backstay angle and the product can be installed on both adjustable and split backstays (see faq for further information).

Nylon backstay bushing supplied
Clamps around backstay allowing cable tension to be adjusted.

Mount your radar higher
Additional 0.6m and 1.3m lengths available to mount your radome higher

Technical Information

• LMB-F2 Technical Drawing
• LMB-F2 Installation Instructions
