Description

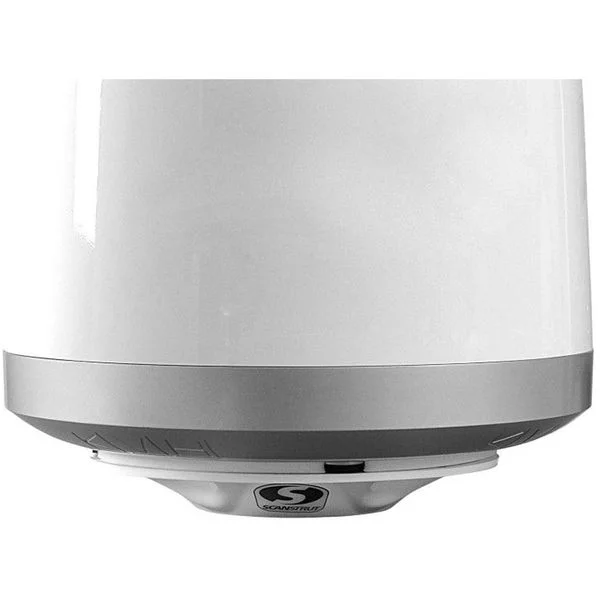

Maximize your antenna’s performance with the Scanstrut SC65 satcom antenna mount, manufactured from a single-piece composite GRP moulding for a high strength, corrosion-free mounting. Easily install and maintain your antenna through external fixings and pre-drilled mounting holes.
Scanstrut SC65 mount reduces the overall footprint of your satcom antenna, giving you a greater choice when of where to install it and also making for an easier installation on narrow radar arches. All cables for the antenna are routed through the base of the mount for a clean and simple finish.
The satcom antenna mount is suitable for the following:
– Camos CSA-450 & CSA-600
– Furuno Felcom500
– Garmin GTV6
– Intellian d6, FB500, FB500R, i6, i6p, k6 & s6HD
– KVH TracVision F55, TracVision F77, TracVision G6, TracVision HD7, TracVision M7 & TracVision UHD7
– Raymarine 60STV
– Sea-Tel ST24 TVRO
The SC65 kit contains:
– SC65 Composite Moulding
– Expanded Polyethylene Seal
– Neat Installation
– Satcom mount fixings hidden internally
– Easy to Install & Maintain
– Antenna fixings external for ease of antenna installation and maintenance
– Watertight Installation
– Includes factory fitted watertight seal
Mounting on a curved arch? Scanstrut’s SC50 Adjustable Base Wedge accessory (part number 6-80620), will solve your problem and level your Satcom installation.
Specifications
| Material | 8mm Composite GRP with White Gel Coat |
| Brand | Scanstrut |
| Contents | SC65 Composite Moulding & Expanded Polyethylene Seal |
| Height | 60mm (2.36″) |
| Diameter | Top: 465mm (18.31″), Bottom: 200mm (7.87″), Base Screw Holes: 9.5mm (0.37″), Mounting Screw Holes: 12.5mm (0.49″) |
| Dimensions | Distance between mounting hole centres (square): 120mm (4.72″), 254mm (10″), 268.7mm (10.67″) & 304.8mm (12″) |
More Info/Downloads
sc45 sc65 installation instructions
Manufacturer Part Number: SC65
