Description

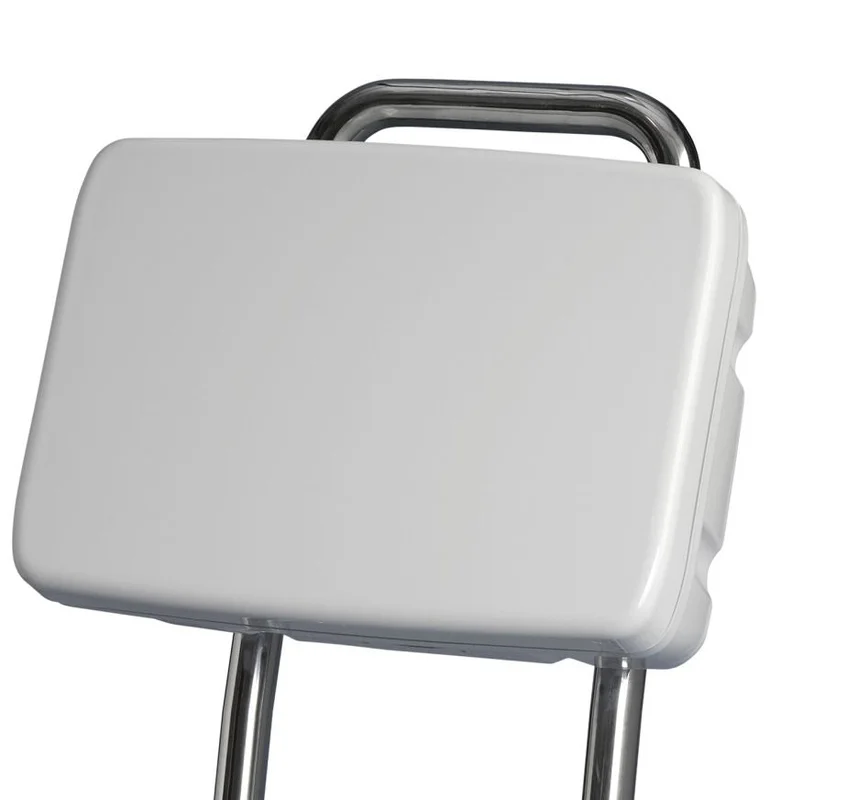

SPH-12-W Scanpods – Helm

SPH-12-W

SPH-12-W

Fits up to 12″ displays

Designed for mounting your display right where you need it. Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.

Product Information.

Universal helm fixing
Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.

Secure & watertight install
Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry.

No drill fixing kit
Customised u-bolts fit around the rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

Hassle-free install & service
Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

Increased protection
Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and uv so you can have confidence that it won’t deteriorate over time.

Supplied uncut
As standard you will receive your scanpod uncut. For a small charge factory cutting service is available.

Technical Information

• SPH-12-W Installation Instructions
• SPH-12-W Technical Drawing
