Description

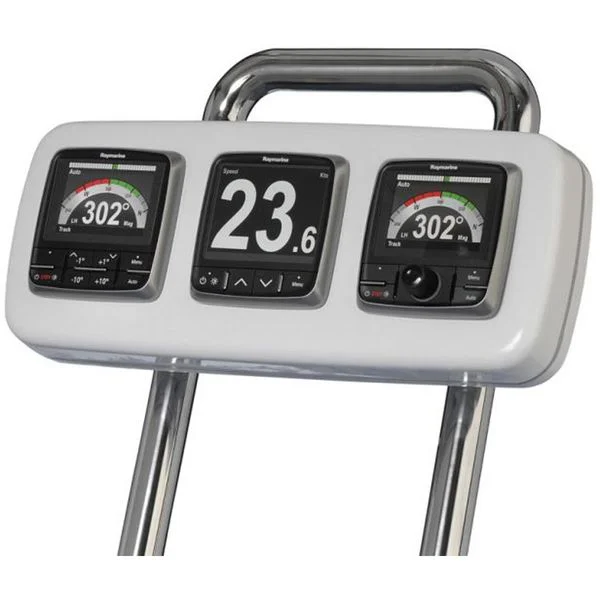

Scanstrut SPH-3I-W ScanPod Helm Pod is designed for mounting up to 3 standard sized navigation instruments or autopilots, right where you need them. The Helm Pod fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) in diameter. This allows you to have your instruments in the prime position while out on your sailing boat.
Scanstrut Helm Pod SPH-3I-W fits the following devices:
Instruments & Autopilots:
– B&G 10 / 10 HV, Triton & Triton²
– Furuno FI-50 STD Instruments, NAVpilot-300 & NAVpilot-711C
– Garmin GMI 10, GMI 20, GNX, GNX 20 & GNX 21
– Nexus NX, NX2 Digital & NX2 Analogue
– Northstar Explorer 310 Instruments
– Raymarine i70, p70, p70r, ST290 Analogue, ST60+, ST70 & T100 Series
– Simrad AP24, AP44, IS20, IS35 Digital Gauge, IS42 Digital Display, IS42J Digital Gauge, IS70 & IS80
– Tacktick Maxi Display T100 Series
– Universal helm fixing: Fits pedestal rails 25mm – 33.7mm (0.98″ – 1.33″) OD.
– Secure & watertight install: Saddle system supports the stainless tubing enabling a secure & rigid fit onto any pedestal & also ensures a watertight seal at cable entry.
– No drill fixing kit: Customised U-bolts fit around the rail & through the saddles into the back of the pod eliminating the need for time consuming & awkward drilling of the stainless rail.
– Hassle-free install & service: Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick & safe installation & repeat servicing.
– Increased protection: Pod seal is made from a high tear strength silicone, it has a very high resistance to heat & UV so you can have confidence that it won’t deteriorate over time.
– Supplied uncut: As standard you will receive your scanpod uncut. For a small charge Scanstrut offer a factory cutting service.
Specifications
| Brand | Scanstrut |
| Cut Out | Maximum Display: 368mm x 118mm (14.5″ x 4.65″) |
| Height | 181mm (7.1″) |
| Width | 432mm (17″), Fits distance between mounting rails: 177.8mm to 317mm (7″ – 12.5″) |
| Depth | 102mm (4″) |
| Diameter | For Pedestal Rail OD: 25mm to 33.7mm (0.98″ – 1.33″) |
| Dimensions | Maximum Usable Face: 390mm x 140mm (15.35″ x 5.5″) |
More Info/Downloads
sph 3i 4i 8 9 12 13 15d system w installation instructions
Manufacturer Part Number: SPH-3I-W
